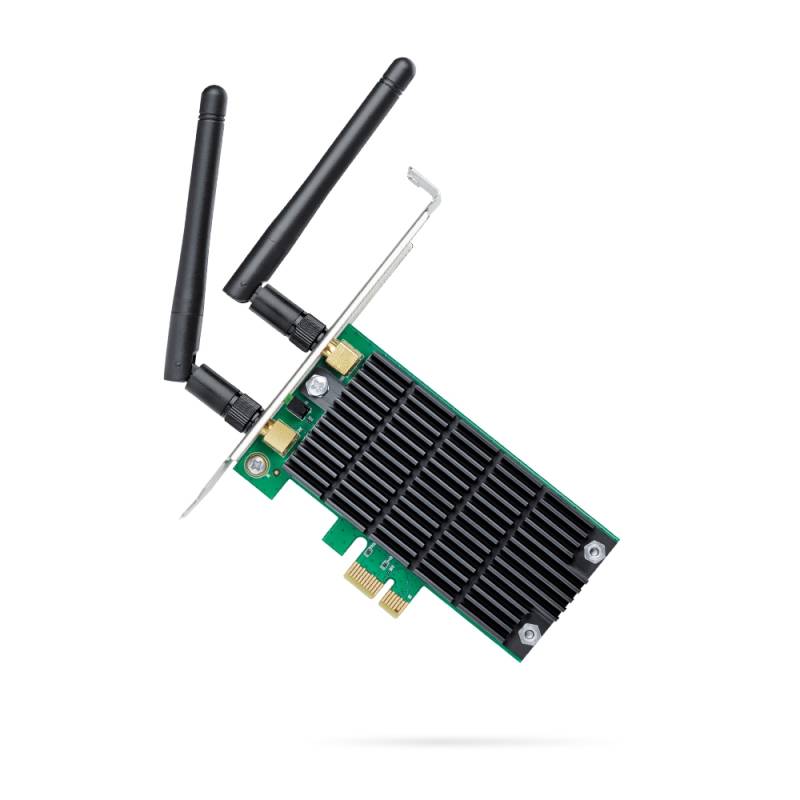

Código parte: ARCHER T4E
Más información: Archer T4E
|
CARACTERÍSTICAS DE HARDWARE |
|
| Interface: | PCI Express |
| Dimensiones (W X D X H): | 4.8 x 4.5 x 0.85 in (120.8*115.2*21.5 mm) |
| Tipo de Antena: | 2 Dual Band Detachable Antennas |
CARACTERÍSTICAS INALÁMBRICAS |
|
| Estándares Inalámbricos: | IEEE 802.11ac/n/a 5 GHz |
| IEEE 802.11n/g/b 2.4 GHz | |
| Tasa de Señal: | 5 GHz |
| 11ac: Up to 867 Mbps(dynamic) | |
| 11n: Up to 300 Mbps(dynamic) | |
| 11a: Up to 54 Mbps(dynamic) | |
| 2.4 GHz | |
| 11n: Up to 300 Mbps(dynamic) | |
| 11g: Up to 54 Mbps(dynamic) | |
| 11b: Up to 11 Mbps(dynamic) | |
| Sensibilidad de Recepción: | 5 GHz : |
| 11ac HT80: -59.5 dBm | |
| 11ac HT40: -63 dBm | |
| 11ac HT20: -68 dBm | |
| 11n HT40: -70 dBm | |
| 11n HT20: -73 dBm | |
| 11a 54Mbps: -76 dBm | |
| 11a 6Mbps: -92 dBm | |
| 2.4GHz : | |
| 11n HT40: -67.5 dBm | |
| 11n HT20: -70 dBm | |
| 11g 54Mbps: -72 dBm | |
| 11b 11Mbps: -86.5 dBm | |
| Potencia de Transmision: | 5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP) |
| 2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP) | |
| Modos Inalámbricos: | Ad-Hoc / Infrastructure mode |
| Seguridad Inalámbrica: | Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x |
| Tecnología de Modulación: | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
OTHERS |
|
| Certification: | CE, FCC, RoHS |
| Package Contents: | AC1200 Wireless Dual Band PCI Express Adapter Archer T4E |
| Low-Profile Bracket | |
| Quick Installation Guide | |
| Resource CD | |
| System Requirements: | Windows 10/8.1/8/7/XP (32/64bit) |
| Environment: | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
