HARDWARE FEATURES
|
| Dimensions |
3.7 x 4.8 x 0.8 in |
| (95.2 x 120.8 x 21.5 mm) |
| Antenna Type |
Two High-Gain Dual Band Antennas |
| Chipset |
Intel Wi-Fi 6 Chipset |
BLUETOOTH FEATURES
|
| Standards and Protocols |
Bluetooth 5.2, Bluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0 |
| Interface |
F_USB 2.0 |
WIRELESS FEATURES
|
| Wireless Standards |
IEEE 802.11ax/ac/n/a 5 GHz |
| IEEE 802.11ax/n/g/b 2.4 GHz |
| Bluetooth 5.2/5.0/4.2/4.0 |
| WLAN Signal Rate |
5 GHz |
| 11ax: Up to 2402 Mbps(dynamic) |
| 11ac: Up to 1733 Mbps(dynamic) |
| 11n: Up to 300 Mbps(dynamic) |
| 11a: Up to 54 Mbps(dynamic) |
| |
| 2.4 GHz |
| 11ax: Up to 574 Mbps(dynamic) |
| 11n: Up to 300 Mbps(dynamic) |
| 11g: Up to 54 Mbps(dynamic) |
| 11b: Up to 11 Mbps(dynamic) |
| WLAN Reception Sensitivity |
5 GHz : |
| 11ax HT160：-56.25dBm |
| 11ax HT80: -59dBm |
| 11ax HT40: -62.25dBm |
| 11ax HT20: -65dBm |
| 11ac HT160：-62dBm |
| 11ac HT80: -65.5dBm |
| 11ac HT40: -69.75dBm |
| 11ac HT20: -73.75dBm |
| 11n HT40: -74.5dBm |
| 11n HT20: -77.5dBm |
| 11a 54Mbps: -77.75dBm |
| 11a 6Mbps: -94.5dBm |
| 2.4GHz : |
| 11ax HT40: -60.75dBm |
| 11ax HT20: -63.75dBm |
| 11n HT40: -73dBm |
| 11n HT20: -76.25dBm |
| 11g 54Mbps: -76.5dBm |
| 11b 11Mbps: -89dBm |
| WLAN Transmit Power |
5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP) |
| 2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP) |
| WLAN Modes |
Infrastructure mode |
| Wireless Security |
Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
OTHERS
|
| Certification |
CE, FCC, RoHS |
| Package Contents |

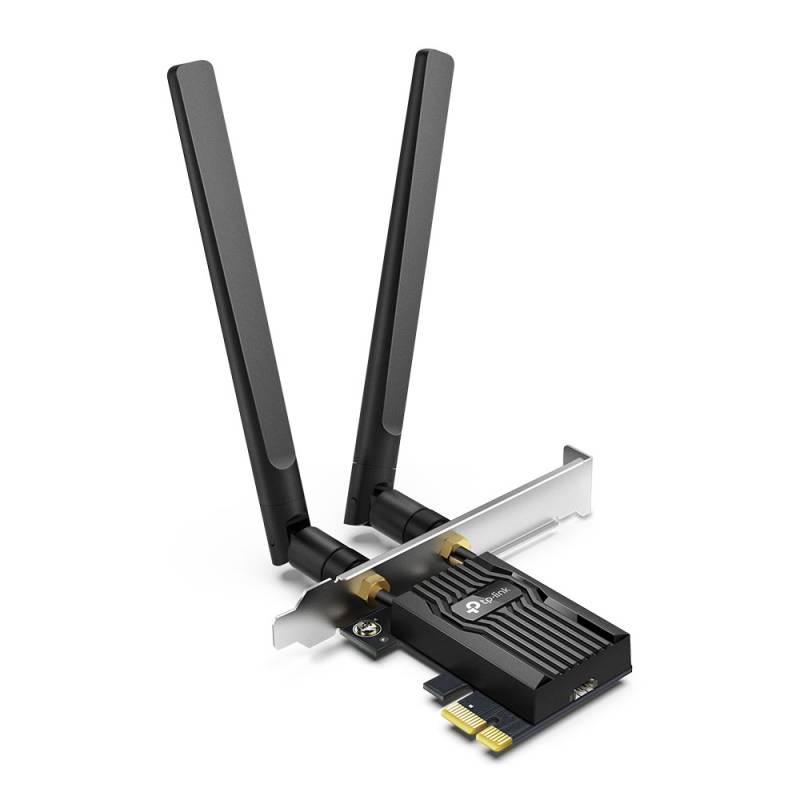

Archer TX55E |
| Two High-Gain Antennas |
| Low-Profile Bracket |
| Standard Bluetooth Header Cable |
| Quick Installation Guide |
| Resource CD |
| System Requirements |
Windows 11/10(64-bit) only |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) |
| Operating Humidity: 10%~90% non-condensing |
| Storage Humidity: 5%~90% non-condensing |
