| CARACTERÍSTICAS DE HARDWARE |
|
| Estándares y Protocolos |
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP |
| Interface |
32-bit PCI Express |
| |
1 10/100/1000Mbps RJ45 port |
| Medios de red |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| |
EIA/TIA-568 100Ω STP (maximum 100m) |
| |
100BASE-TX: UTP category 5, 5e cable (maximum 100m) |
| |
EIA/TIA-568 100Ω STP (maximum 100m) |
| |
1000Base-T: UTP category 5, 5e cable (maximum 100m) |
| LED |
Status |
| Estándares inalámbricos |
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x |
| Tasas de transferencia de datos |
10/100/1000Mbps for Half-Duplex mode |
| |
20/200/2000Mbps for Full-Duplex mode |
| Indicador LED |
1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act |
| Dimensiones |
3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm) |
| Control de Flujo |
IEEE 802.3x Flow Control (Full-Duplex) |
| OTROS |
|
| Certificación |
CE, FCC, RoHS |
| Contenido del paquete |

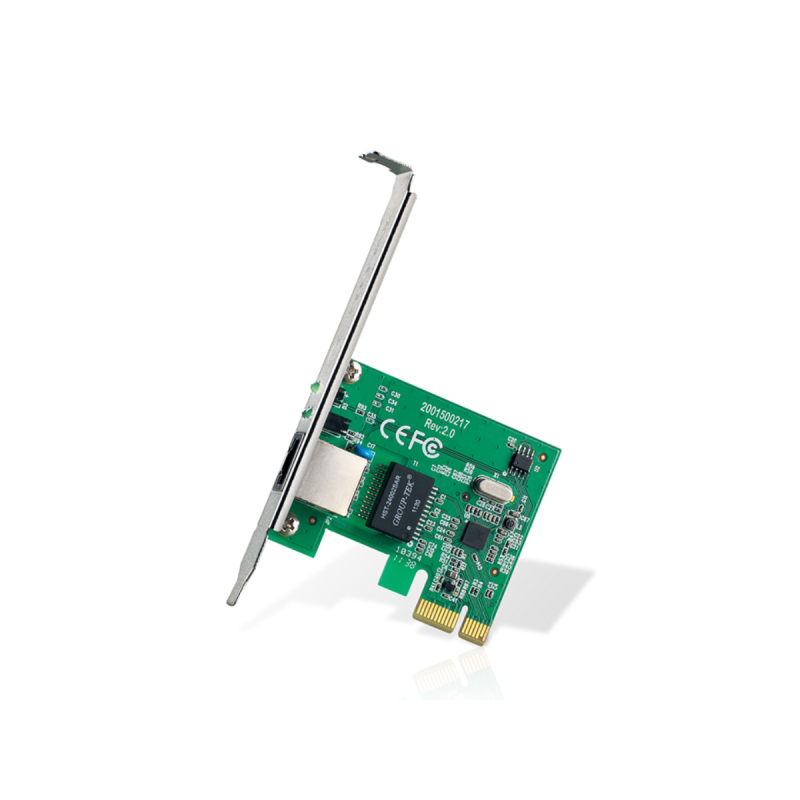

Gigabit PCI Express Network Adapter TG-3468 |
| |
Resource CD |
| |
Quick Installation Guide |
| Requisitos del sistema |
Windows 7(32/64bits),Windows Vista(32/64 bits),Window XP(32/64bits) |
| Ambiente |
Operating Temperature: 0℃~40℃ (32℉~104℉) |
| |
Storage Temperature: -40℃~70℃ (-40℉~158℉) |
| |
Operating Humidity: 10%~90% non-condensing |
| |
Storage Humidity: 5%~90% non-condensing |
