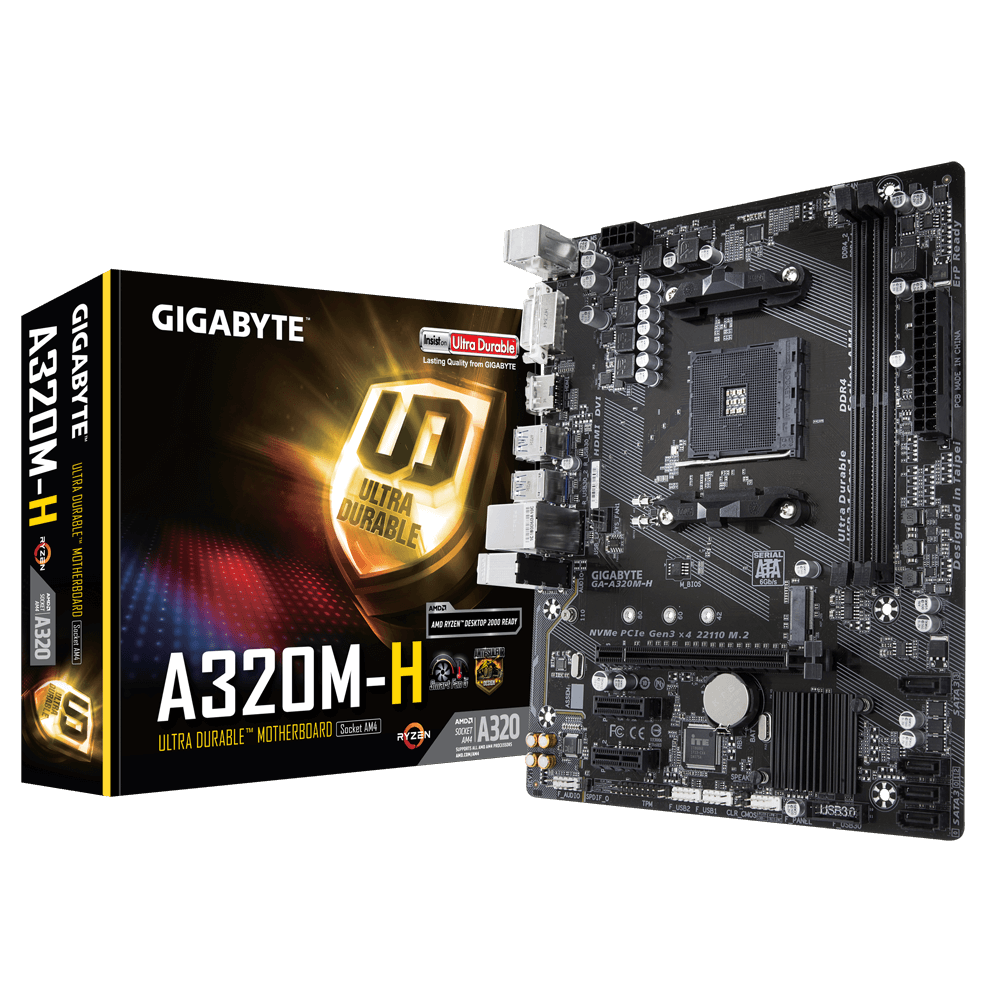

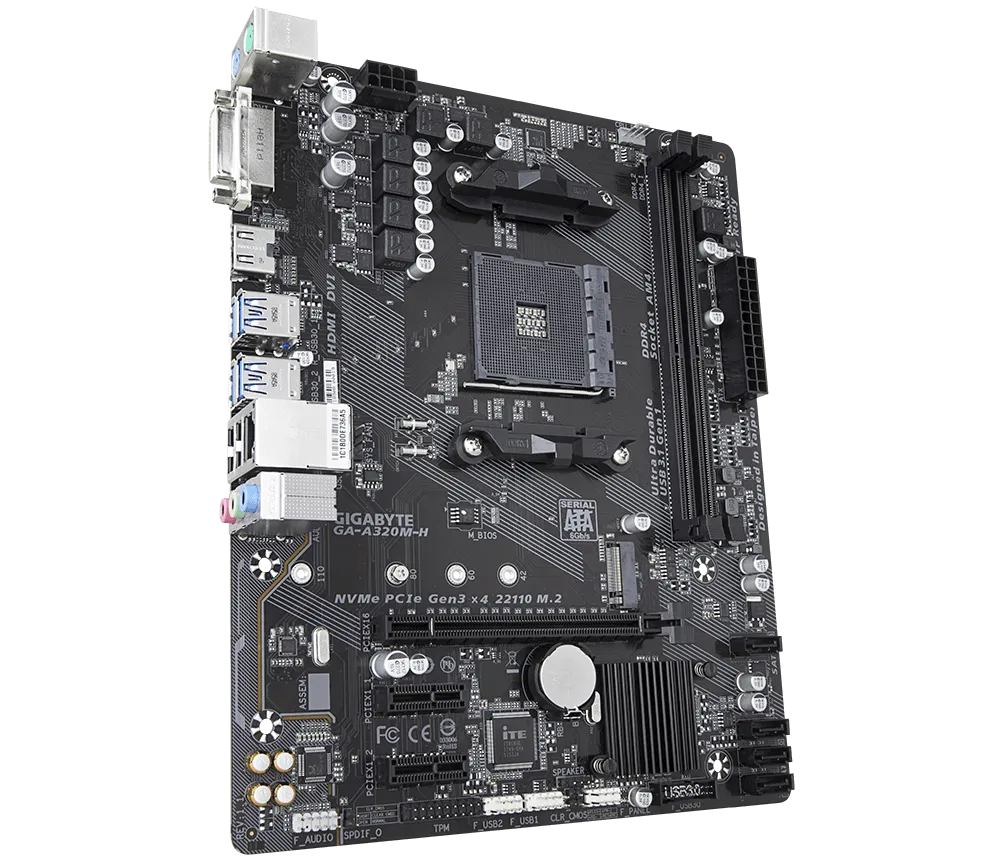

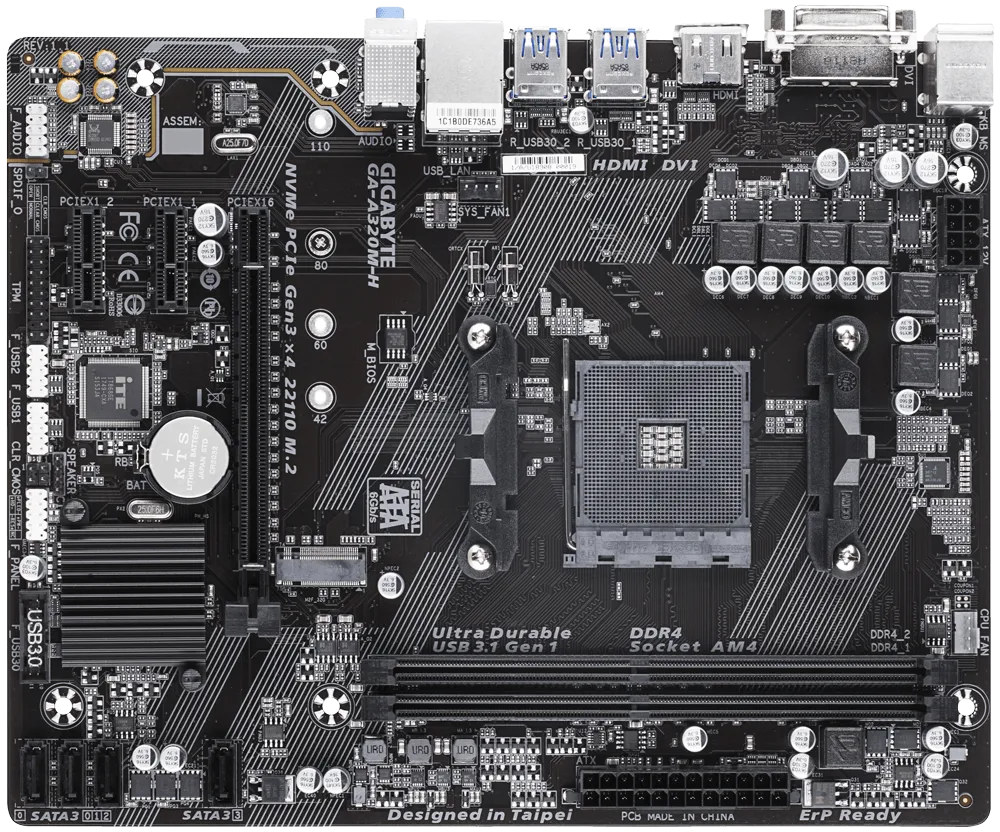

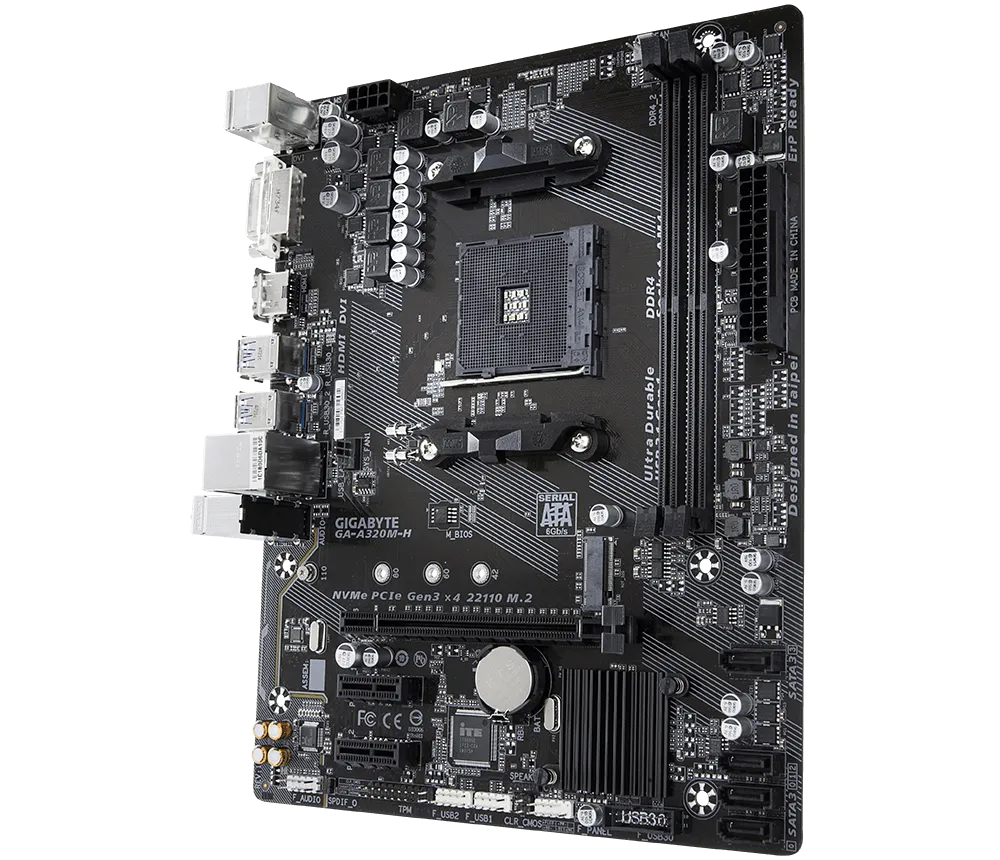

Mother GIGABYTE GA-A320M-H sAM4 (4442)

Mother GIGABYTE GA-A320M-H sAM4 (4442)

Código: 0411538 | Marca: Gigabyte

Código parte: GA-A320M-H

Gigabyte

Soporta AMD 3rd Gen Ryzen ™ / 2nd Gen Ryzen ™ / 1st Gen Ryzen ™ / 2nd Gen Ryzen ™ con Radeon ™ Vega Graphics / 1st Gen Ryzen ™ con Radeon ™ Vega Graphics / Athlon ™ con Radeon ™ Vega Graphics / 7th Gen A-series / Procesadores Athlon X4
DDR4 sin búfer no ECC de doble canal, 2 DIMM
PCIe Gen3 x4 M.2 ultrarrápido con compatibilidad con modo PCIe NVMe y SATA
Condensadores de audio de alta calidad y protector de ruido de audio
Realtek® Gigabit LAN con software acelerador de Internet cFosSpeed
Smart Fan 5 cuenta con 5 sensores de temperatura y 2 cabezales de ventilador híbridos
BIOS UEFI GIGABYTE ™

Producto con Stock

    Procesador
    AM4 Socket: Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
    (Please refer "CPU Support List" for more information.)
    Chipset
    AMD A320
    Memoria
    2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
    * Actual support may vary by CPU.
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
    Gráficos Integrados
    Integrated Graphics Processor:
    1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
    1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
    * Support for HDMI 1.4 version.
    Maximum shared memory of 2 GB

    * Actual support may vary by CPU.
    Audio
    Realtek® audio codec
    High Definition Audio
    2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
    Support for S/PDIF Out
    LAN
    Realtek® GbE LAN chip (10/100/1000 Mbit)
    Puertos de Expansión
    1 x PCI Express x16 slot, running at x16 (PCIEX16)*
    * Actual support may vary by CPU.
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    2 x PCI Express x1 slots
    (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
    Interfaz de Almacenamiento
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2(Note) SSD support)
    * Actual support may vary by CPU.
    4 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.
    (Note) Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.
    USB
    Chipset:
    2 x USB 3.1 Gen 1 ports available through the internal USB header
    6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    CPU:
    4 x USB 3.1 Gen 1 ports on the back panel
    Conectores Internos de E/S
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x system fan header
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x USB 3.1 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
    1 x speaker header
    1 x Clear CMOS jumper
    1 x chassis intrusion header

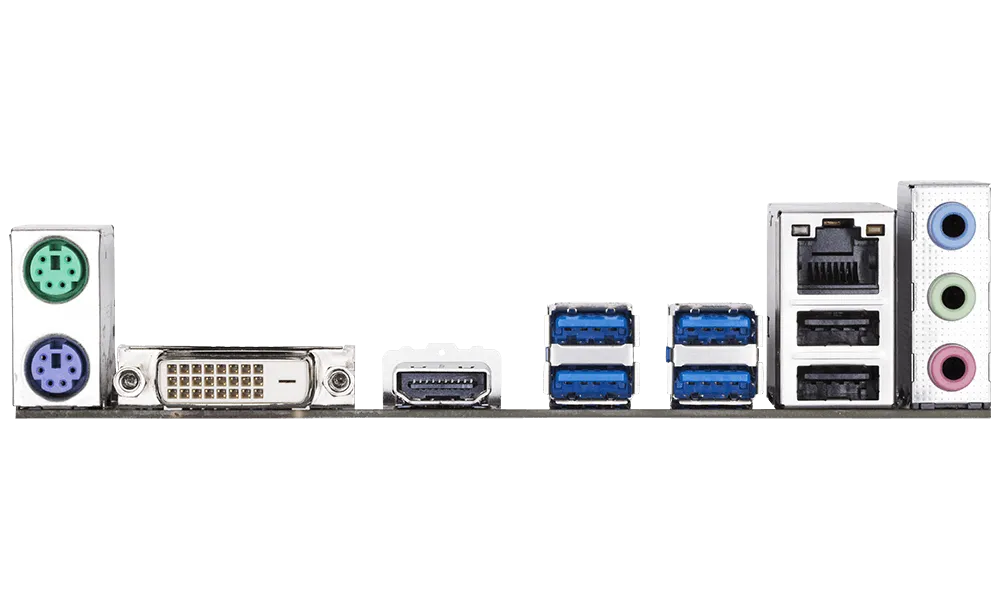

    Conectores del Panel Trasero
    1 x PS/2 keyboard port
    1 x PS/2 mouse port
    1 x DVI-D port
    1 x HDMI port
    4 x USB 3.1 Gen 1 ports
    2 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks (Line In, Line Out, Mic In)
    Controlador de E/S
    iTE® I/O Controller Chip
    Monitorización H/W
    Voltage detection
    Temperature detection
    Fan speed detection
    Overheating warning
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
    BIOS
    1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Características Únicas
    Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    Smart Backup
    System Information Viewer
    Support for Q-Flash
    Support for Xpress Install
    Software Incluido
    Norton® Internet Security (OEM version)
    cFosSpeed
    Sistema Operativo
    Support for Windows 10 64-bit
    Support for Windows 7 64-bit
    * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge, Summit Ridge and Bristol Ridge CPU.
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
    Diseño
    Micro ATX Form Factor; 24.4cm x 19.5cm
    Otras Descripciones
    Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
