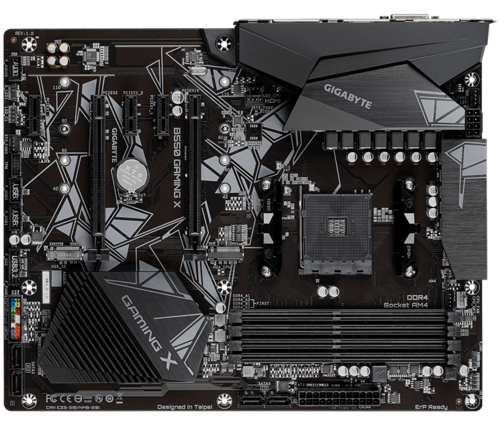

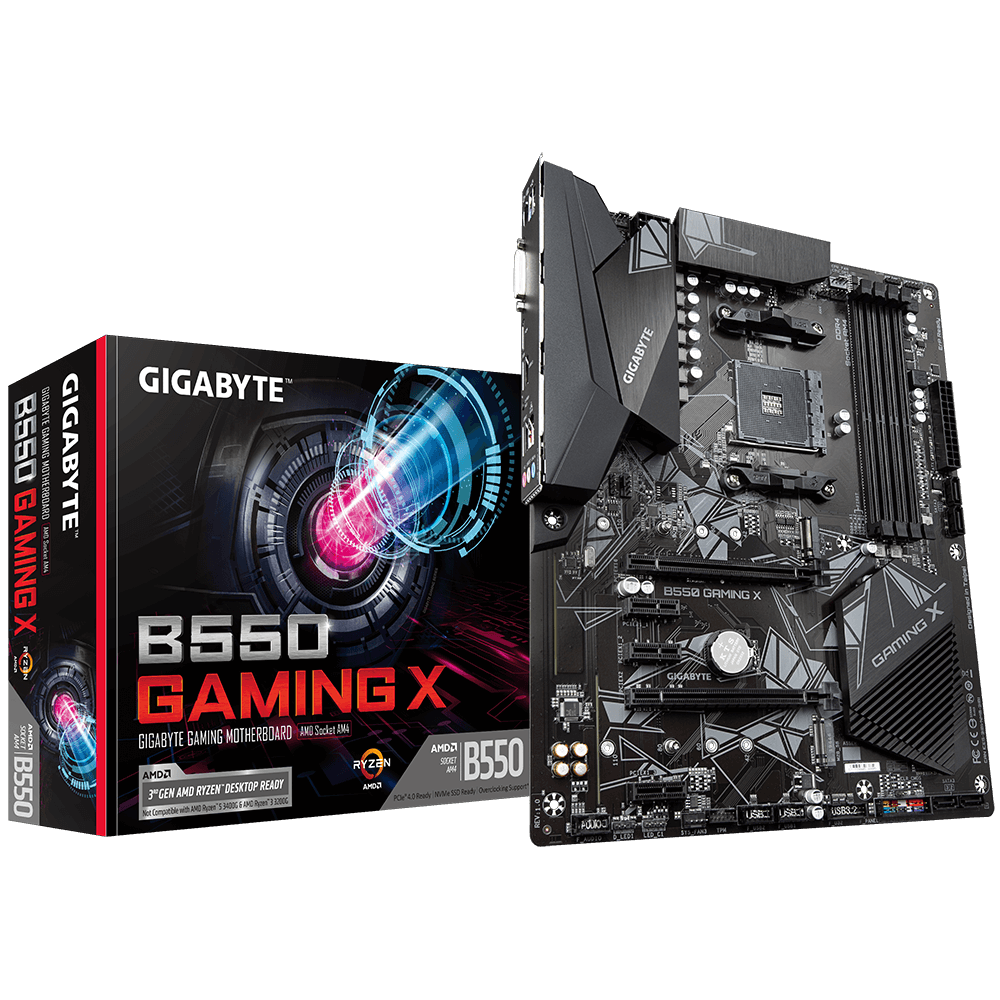

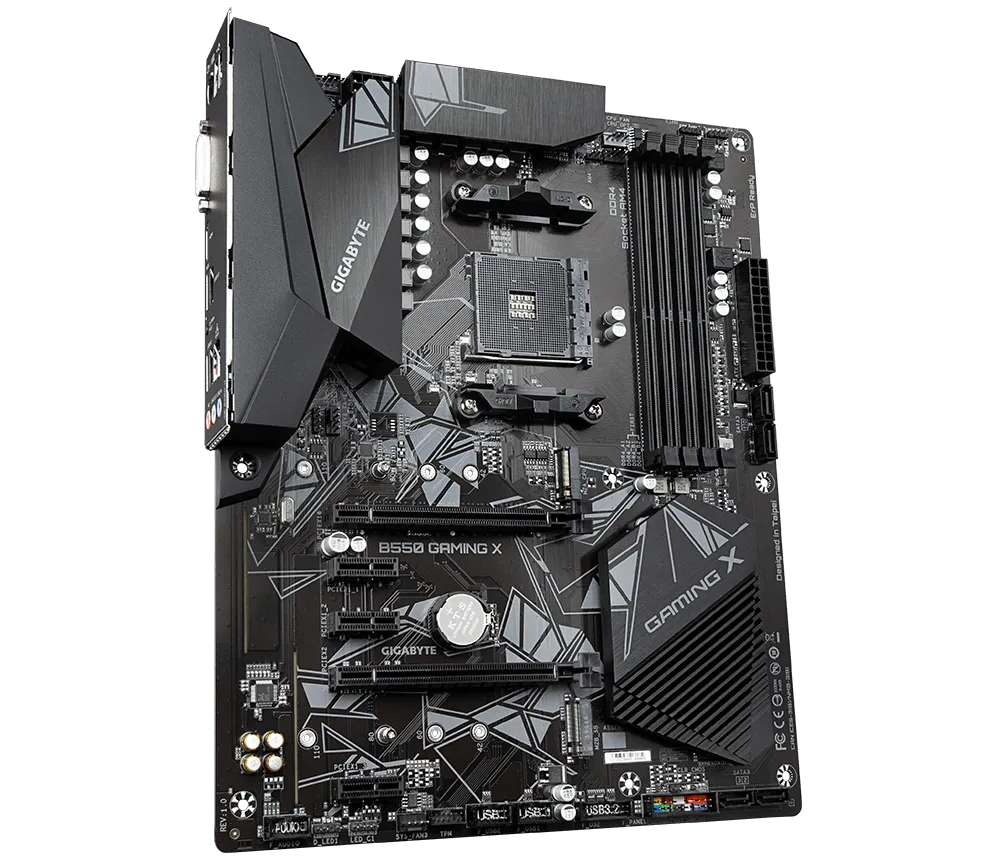

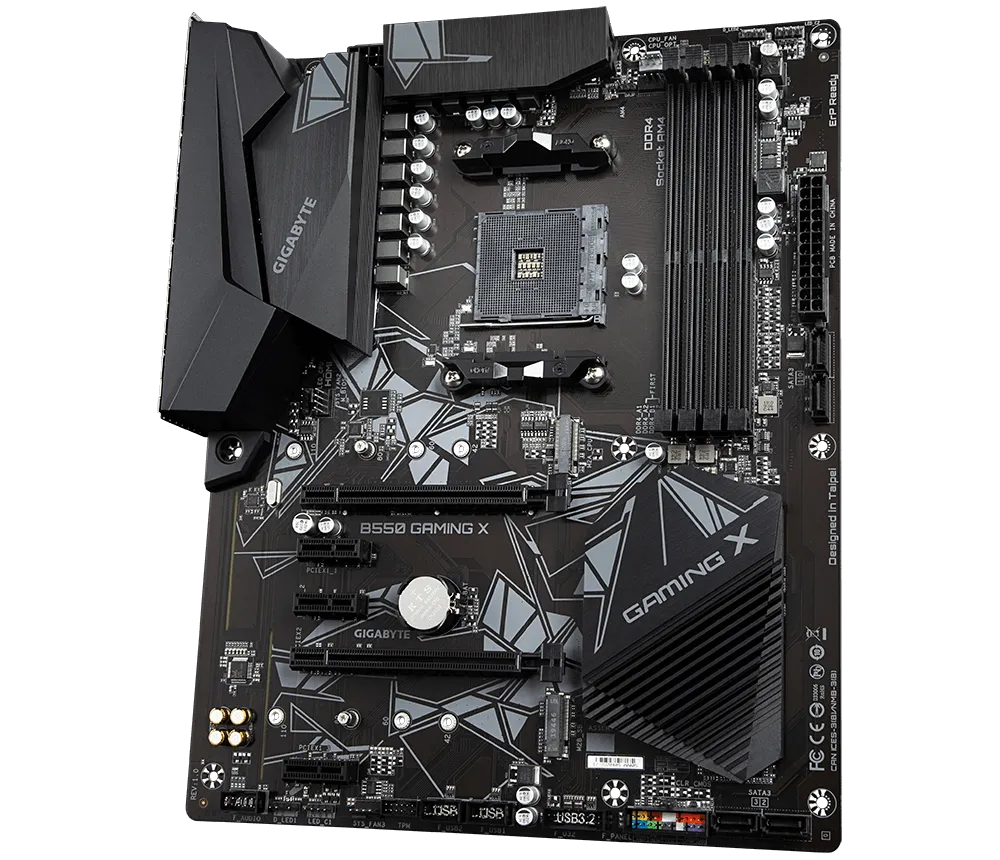

Mother GIGABYTE B550 GAMING X AM4

Mother GIGABYTE B550 GAMING X AM4

Código: 0412765 | Marca: Gigabyte

Código parte: B550 GAMING X

Gigabyte
Consultar

Placa base para juegos AMD B550 con solución VRM digital, LAN para juegos GIGABYTE con administración de ancho de banda, PCIe 4.0 / 3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus, Diseño de resistencias anti-azufre

Admite AMD Ryzen ™ 5000 Series / 3rd Gen Ryzen ™ y 3rd Gen Ryzen ™ con procesadores gráficos Radeon ™
DDR4 sin búfer ECC / no ECC de doble canal, 4 DIMM
Solución VRM digital pura de 10 + 3 fases con MOSFET de bajo RDS (activado)
Ranura Ultra Durable ™ PCIe 4.0 Ready x16
Ranuras ultrarrápidas NVMe PCIe 4.0 / 3.0 M.2
LAN para juegos 8118 exclusiva de GIGABYTE con gestión de ancho de banda
Puertos HDMI, DVI-D para múltiples pantallas
Cuenta con condensadores de audio de alta calidad
RGB FUSION 2.0 admite tiras de LED direccionables y LED RGB
Smart Fan 5 cuenta con múltiples sensores de temperatura, cabezales de ventilador híbridos con FAN STOP
Q-Flash Plus actualiza el BIOS sin instalar la CPU, la memoria y la tarjeta gráfica
Diseño de resistencias anti-azufre.

    Procesador
    AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
    (Please refer "CPU Support List" for more information.)
    Chipset
    AMD B550
    Memoria
    4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    AMD Ryzen™ 5000 series processors/ 3rd Generation AMD Ryzen™ :
    Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
    Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
    Gráficos Integrados
    Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
    1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Maximum shared memory of 16 GB
    Audio
    Realtek® ALC887 codec
    High Definition Audio
    2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
    LAN
    Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
    Puertos de Expansión
    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
    3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
    Supporting PCIe 3.0 x2 mode
    3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrated in the Chipset:
    Supporting PCIe 3.0 x1 mode
    Interfaz de Almacenamiento
    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
    3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
    3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
    Supporting SATA and PCIe 3.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors, integrated in the Chipset:
    Support for RAID 0, RAID 1, and RAID 10
    USB
    Chipset:
    1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    3 x USB 3.2 Gen 1 ports on the back panel
    Chipset:
    2 x USB 3.2 Gen 1 ports available through the internal USB header
    6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    Conectores Internos de E/S
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x water cooling CPU fan header
    3 x system fan headers
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    1 x CPU cooler LED strip/RGB LED strip header
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    1 x Clear CMOS jumper
    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

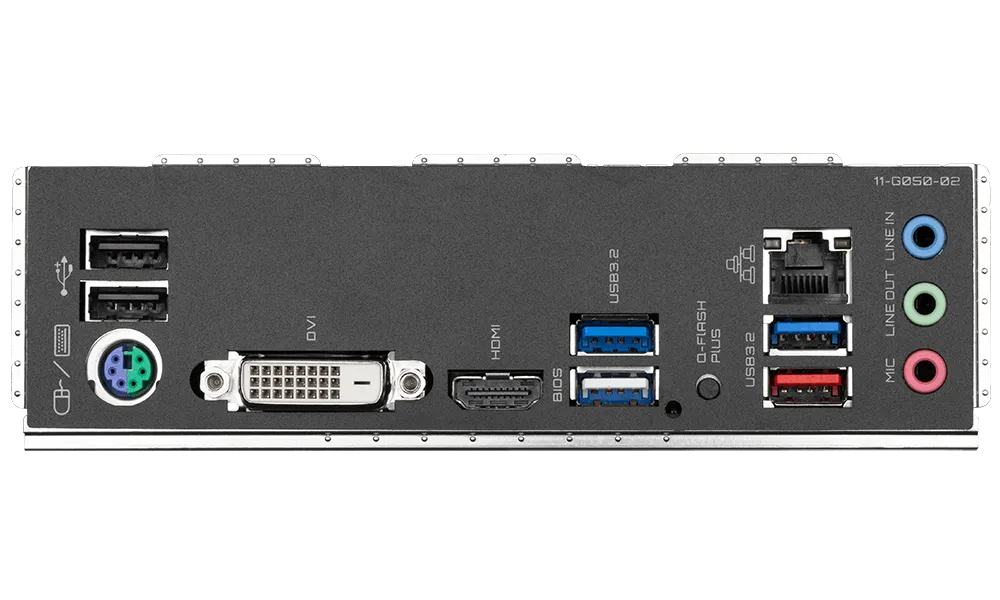

    Conectores del Panel Trasero
    2 x USB 2.0/1.1 ports
    1 x PS/2 keyboard/mouse port
    1 x DVI-D port
    1 x HDMI port
    3 x USB 3.2 Gen 1 ports
    1 x USB 3.2 Gen 2 Type-A port (red)
    1 x Q-Flash Plus button
    1 x RJ-45 port
    3 x audio jacks
    Controlador de E/S
    iTE® I/O Controller Chip
    Monitorización H/W
    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Overheating warning
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
    BIOS
    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Características Únicas
    Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
    Support for Q-Flash Plus
    Support for Q-Flash
    Support for Xpress Install
    Software Incluido
    Norton® Internet Security (OEM version)
    Realtek® 8118 Gaming LAN Bandwidth Control Utility
    Sistema Operativo
    Support for Windows 10 64-bit
    Diseño
    ATX Form Factor; 30.5cm x 24.4cm
    Otras Descripciones
    Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
