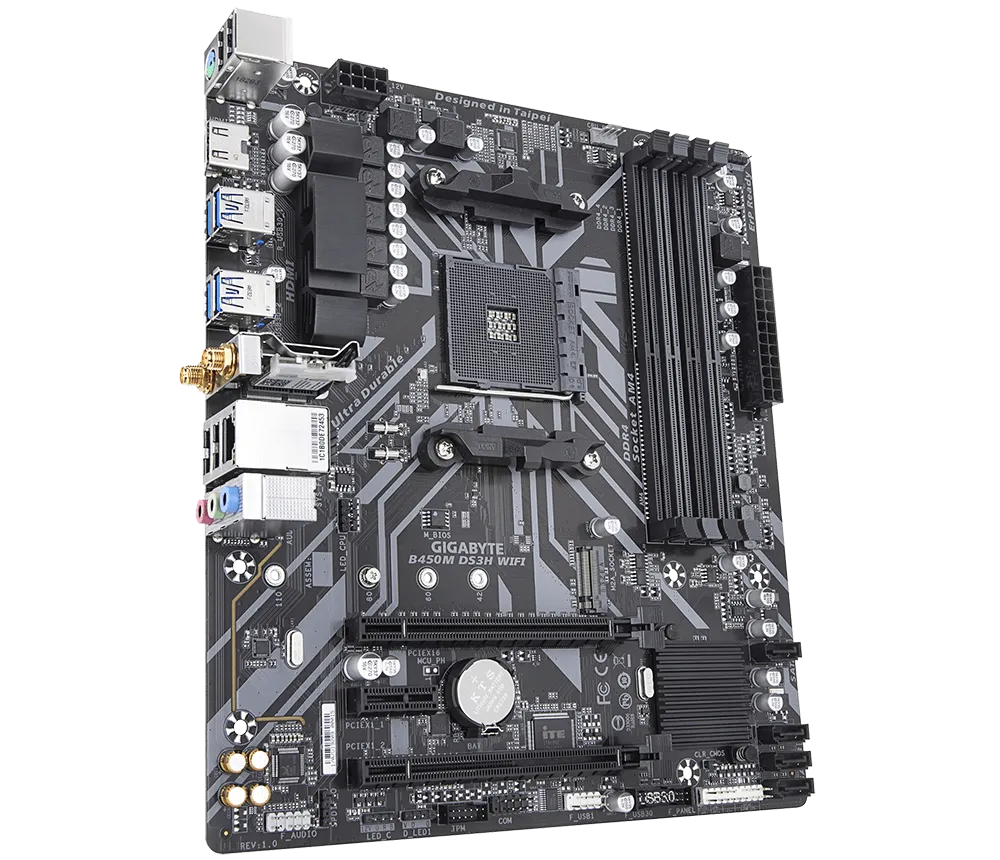

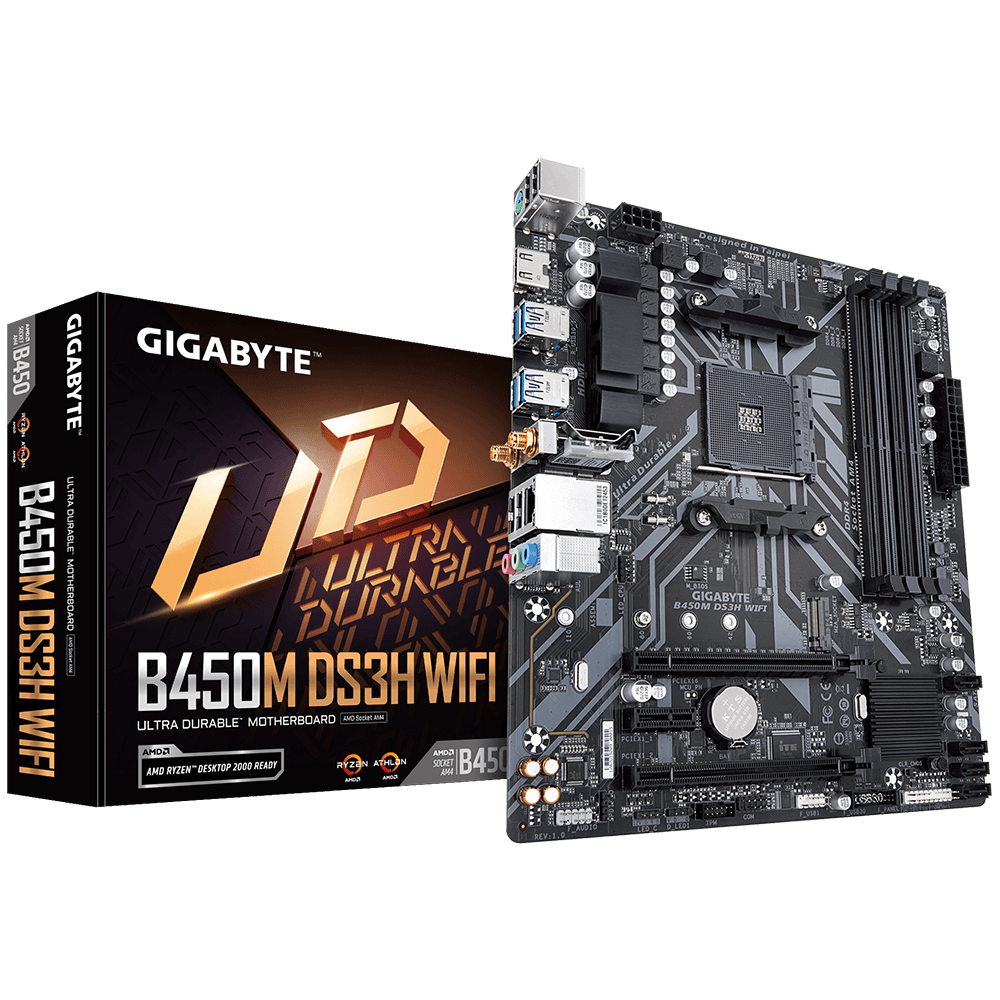

Mother GIGABYTE B450M DS3H WIFI sAM4 (5586)

Mother GIGABYTE B450M DS3H WIFI sAM4 (5586)

Código: 0412662 | Marca: Gigabyte

Código parte: B450M DS3H WIFI

Gigabyte
Consultar

Placa base AMD B450 ultra duradera con Realtek® GbE LAN con cFosSpeed, PCIe Gen3 x4 M.2, RGB FUSION 2.0, Intel® Dual Band 802.11ac WIFI, compatible con CEC 2019

Admite AMD Ryzen ™ serie 5000 / 3.ª generación Ryzen ™ / 2.ª generación Ryzen ™ / 1.ª generación Ryzen ™ / 2.ª generación Ryzen ™ con gráficos Radeon ™ Vega / 1.ª generación Ryzen ™ con gráficos Radeon ™ Vega / Athlon ™ con procesadores gráficos Radeon ™ Vega
DDR4 sin búfer no ECC de doble canal, 4 DIMM
Intel® Dual Band 802.11ac WIFI y BT 4.2
PCIe Gen3 x4 M.2 ultrarrápido con compatibilidad con modo PCIe NVMe y SATA
Condensadores de audio de alta calidad y diseño de protección de ruido de audio
RGB FUSION 2.0 con compatibilidad con tiras de LED RGB y RGB direccionables
Realtek® Gigabit LAN con software acelerador de Internet cFosSpeed
Smart Fan 5 cuenta con 5 sensores de temperatura y 2 cabezales de ventilador híbridos con FAN STOP
Centro de aplicaciones que incluye las utilidades EasyTune ™ y Cloud Station ™
Preparado para CEC 2019, ahorre energía con un simple clic



Producto con Stock

    Procesador
    AM4 Socket: Supports AMD Ryzen™ 5000 series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
    (Please refer "CPU Support List" for more information.)
    Chipset
    AMD B450
    Memoria
    4 x DDR4 DIMM sockets supporting up to 128 GB of system memory
    Dual channel memory architecture
    Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
    Gráficos Integrados
    Integrated Graphics Processor:
    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note)
    * Support for HDMI 2.0 version and HDCP 2.2.(Note)
    Maximum shared memory of 16 GB

    (Note) Actual support may vary by CPU.
    Audio
    Realtek®Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    Support for S/PDIF Out
    LAN
    Realtek® GbE LAN chip (10/100/1000 Mbit)
    Wireless Communication module
    Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
    BLUETOOTH 4.2
    Support for 11ac wireless standard and up to 433 Mbps data rate
    * Actual data rate may vary depending on environment and equipment.
    Puertos de Expansión
    1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    1 x PCI Express x16 slot, running at x1 (PCIEX1_2)
    1 x PCI Express x1 slot
    (The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.)
    (Note) Actual support may vary by CPU.
    Interfaz de Almacenamiento
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)
    * Actual support may vary by CPU.
    * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.
    4 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.
    USB
    CPU:
    4 x USB 3.1 Gen 1 ports on the back panel
    Chipset:
    2 x USB 3.1 Gen 1 ports available through the internal USB header
    6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    Conectores Internos de E/S
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x system fan header
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x CPU cooler LED strip/RGB LED strip header
    1 x RGB LED strip header
    2 x addressable LED strip headers
    1 x USB 3.1 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
    1 x serial port header
    1 x Clear CMOS jumper
    Conectores del Panel Trasero
    1 x PS/2 keyboard/mouse port
    1 x HDMI port
    4 x USB 3.1 Gen 1 ports
    4 x USB 2.0/1.1 ports
    2 x SMA antenna connectors (1T1R)
    1 x RJ-45 port
    3 x audio jacks
    Controlador de E/S
    iTE® I/O Controller Chip
    Monitorización H/W
    Voltage detection
    Temperature detection
    Fan speed detection
    Overheating warning
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
    BIOS
    1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Características Únicas
    Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
    Support for Q-Flash
    Support for Xpress Install
    Software Incluido
    Norton® Internet Security (OEM version)
    cFosSpeed
    Sistema Operativo
    Support for Windows 10 64-bit
    Support for Windows 7 64-bit
    * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
    Diseño
    Micro ATX Form Factor; 24.4cm x 21.5cm
    Otras Descripciones
    Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
