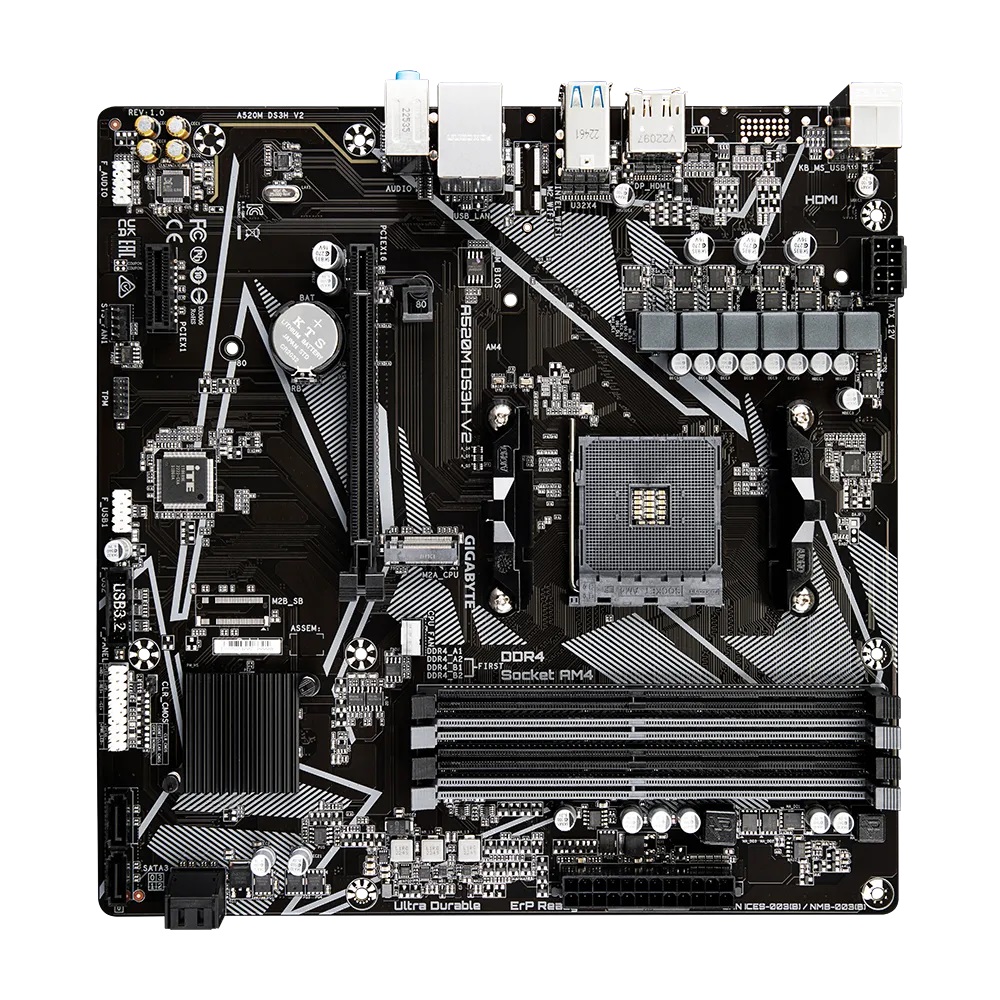

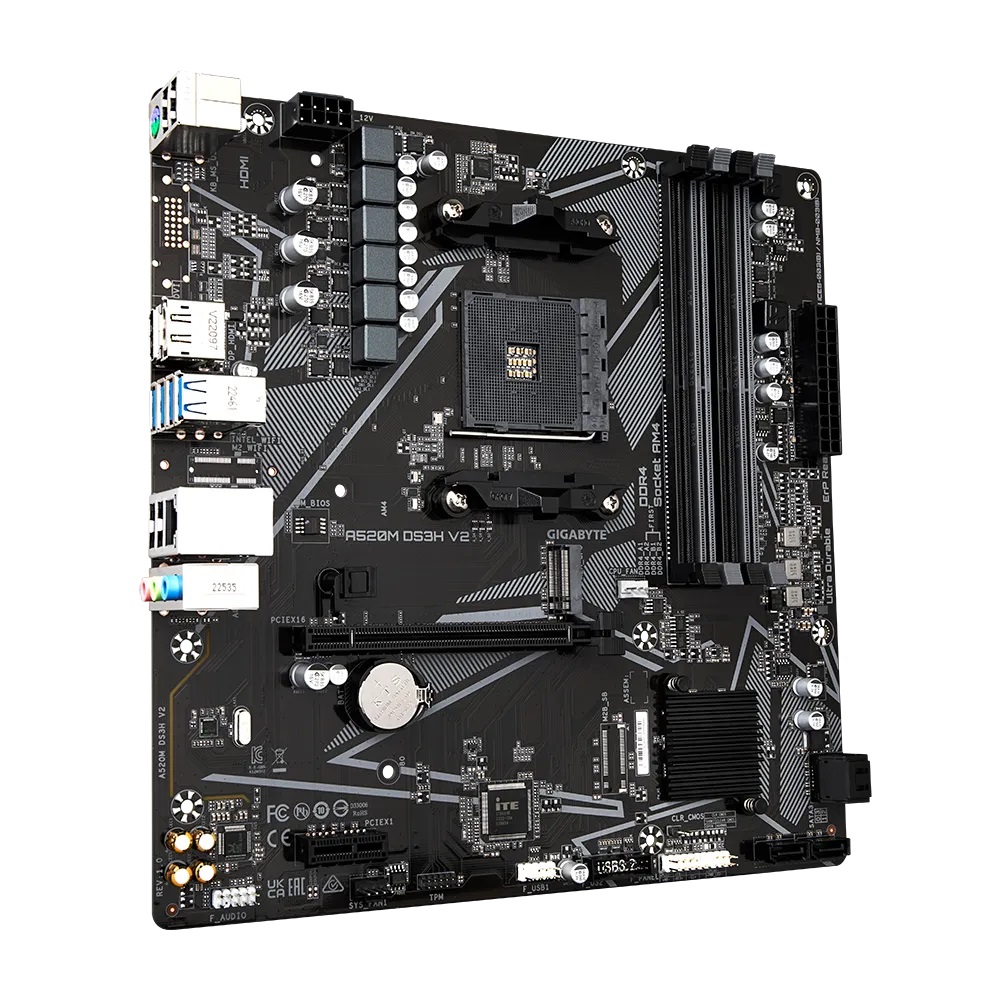

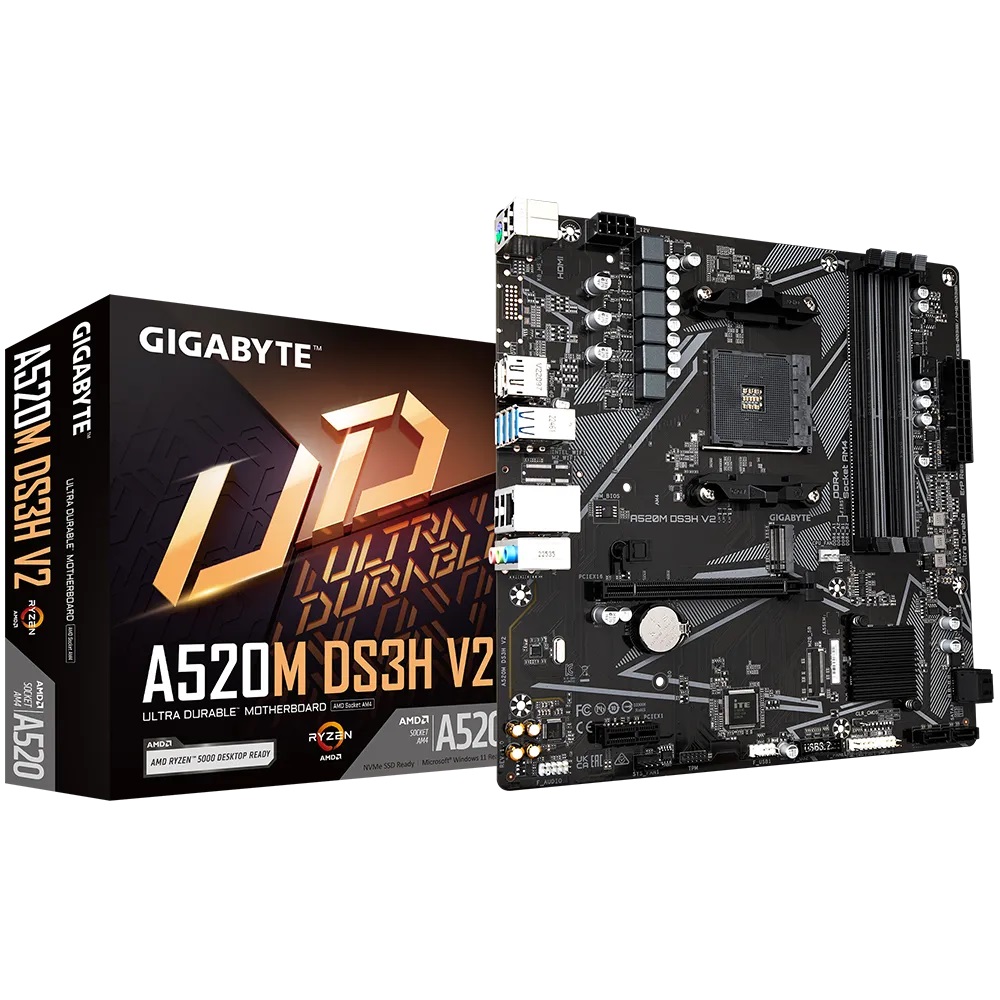

Código parte: A520M DS3H V2
Compatible con los procesadores AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series y Ryzen™ 3000 y Ryzen™ 3000 G-Series
DDR4 sin búfer ECC/no ECC de doble canal, 4 DIMM
Ranura PCIe 3.0 x16 Ultra Durable™
Conectores NVMe PCIe 3.0 M.2
Más información: A520M DS3H
Procesador
|
1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors |
Chipset
|
1. AMD A520 |
Memoria
|
1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
2. Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules |
|
3. Dual channel memory architecture | |
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules | |
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
6. Support for Extreme Memory Profile (XMP) memory modules | |
Gráficos Integrados
|
|
Integrated Graphics Processor:
|
1. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz |
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
Maximum shared memory of 16 GB | |
Audio
|
1. Realtek® Audio CODEC |
2. High Definition Audio | |
3. 2/4/5.1/7.1-channel |
