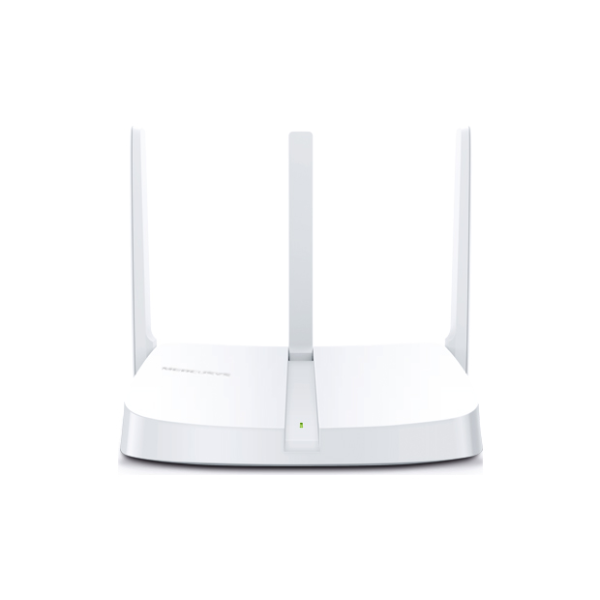

Código parte: MW305R
300Mbps wireless speed is ideal for HD streaming, online gaming, and large file downloads
Three 5dBi antennas greatly increase wireless signal strength, size and stability
Intuitive webpage guides you through the setup process in minutes
Más información: MW305R
Dimensions (W X D X H) |
147 mm × 115 mm × 34 mm |
---|---|
Reception Sensitivity |
• 270M: -70dBm@10% PER • 11M: -87dBm@10% PER |
Wireless Security |
WPA-PSK/WPA2-PSK |
Guest Network |
2.4GHz guest network |
External Power Supply |
5VDC/0.6A |
Antenna Type |
3 x 5dBi fixed omni directional antennas |
Signal Rate |
11n: Up to 300Mbps (Dynamic) 11g: Up to 54Mbps (Dynamic) 11b: Up to 11Mbps (Dynamic) |
Button |
Reset/WPS button |
Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Frequency |
2.4 - 2.4835GHz |

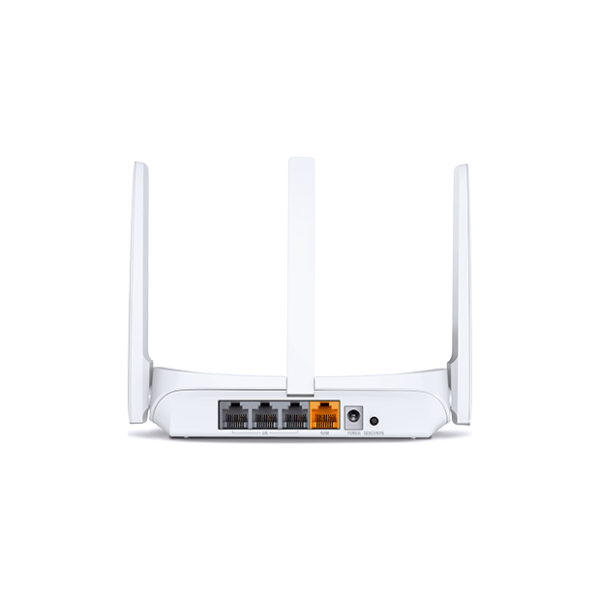

Interfaces |
3 10/100Mbps LAN ports 1 10/100Mbps WAN port |
Certifications |
CE, ROHS |
Package Contents |
300Mbps Wireless N Router MW305R Power adapter Quick installation guide Ethernet cable |
Transmission Power |
<20dBm |
Wireless Functions |
WDS bridge |
WAN Type |
Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
Management |
Parental Control Access control Local management Remote management |
DHCP |
Server |
Port Forwarding |
Virtual server, UPnP, DMZ |
Dynamic DNS |
DynDNS、NO-IP |
Firewall Security |
IP and MAC address binding |
Protocols |
IPv4 |
