| Wireless: |
Wireless Standards: |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| |
Frequency: |
2.400 - 2.4835GHz |
| |
Signal Rate: |
11n: Up to 150Mbps (Dynamic) |
| |
|
11g: Up to 54Mbps (Dynamic) |
| |
|
11b: Up to 11Mbps (Dynamic) |
| |
Reception Sensitivity: |
130M: -68dBm@10% PER |
| |
|
108M: -68dBm@10% PER |
| |
|
54M: -68dBm@10% PER |
| |
|
11M: -85dBm@8% PER |
| |
|
6M: -88dBm@10% PER |
| |
|
1M: -90dBm@8% PER |
| |
Transmission Power: |
<20dBm |
| |
Wireless Security: |
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Hardware: |
Dimensions (W X D X H): |
0.74 × 0.58 × 0.27 in. (18.9 × 14.8 × 6.85 mm) |
| |
Interfaces: |
USB 2.0 |
| |
Antenna Type: |
Internal |
| Others: |
Certifications: |
CE, ROHS |
| |
Package Contents: |

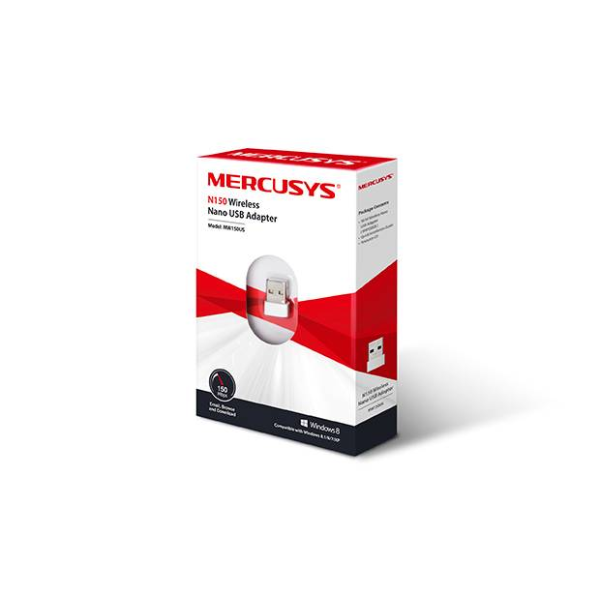

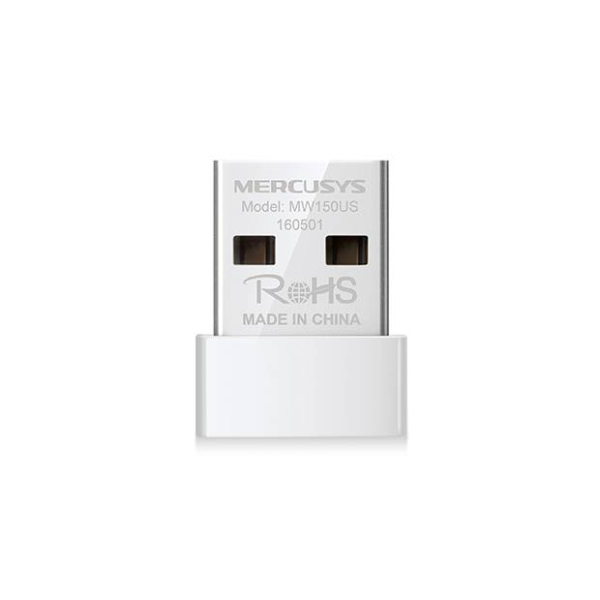

N150 Wireless Nano USB Adapter |
| |
|
MW150US |
| |
|
Quick installation guide |
| |
|
Resource CD |
| |
Environment: |
Operating temperature: 0⁰C ~40⁰C (32⁰F ~104⁰F) |
| |
|
Storage temperature: -40⁰C~70⁰C (-40⁰F~158⁰F) |
| |
|
Operating humidity: 10%~ 90% non-condensing |
| |
|
Storage humidity: 5%~90% non-condensing |
| |
System Requirements: |
Windows 8.1/8/7/XP (32/64bit) |
