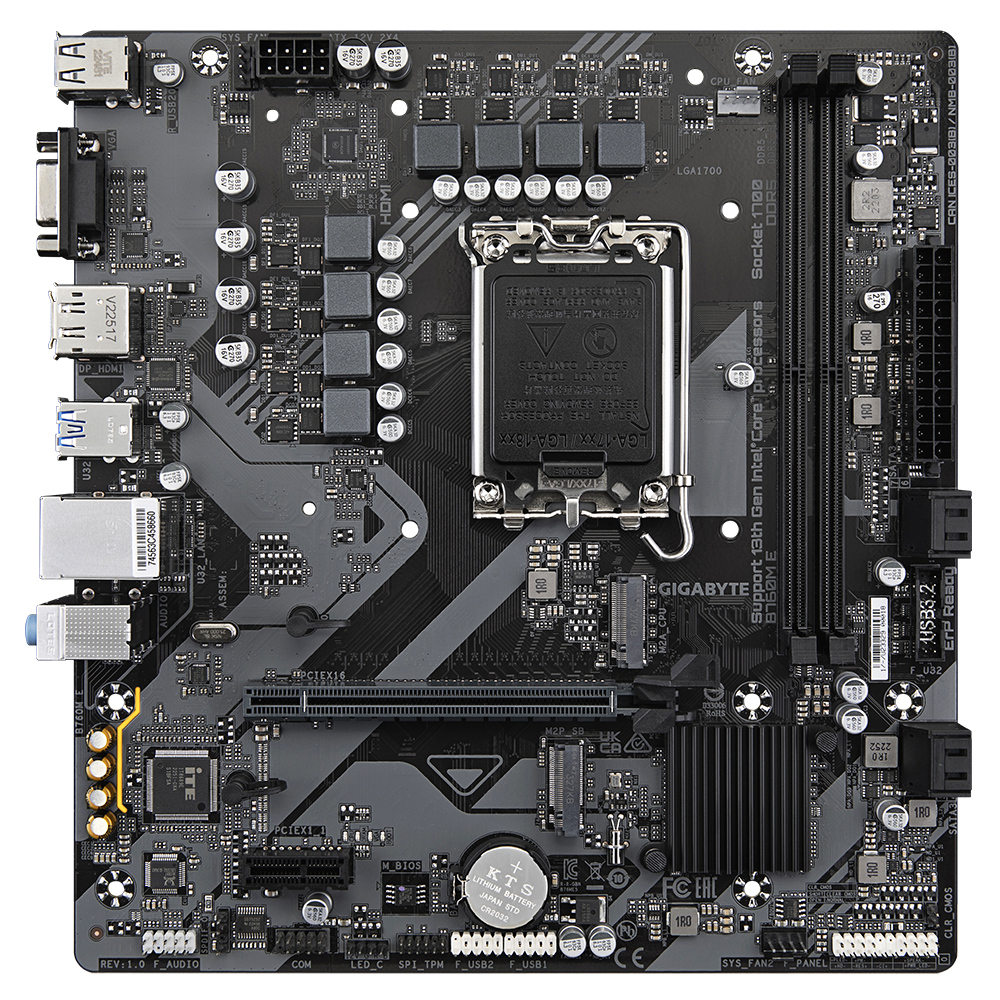

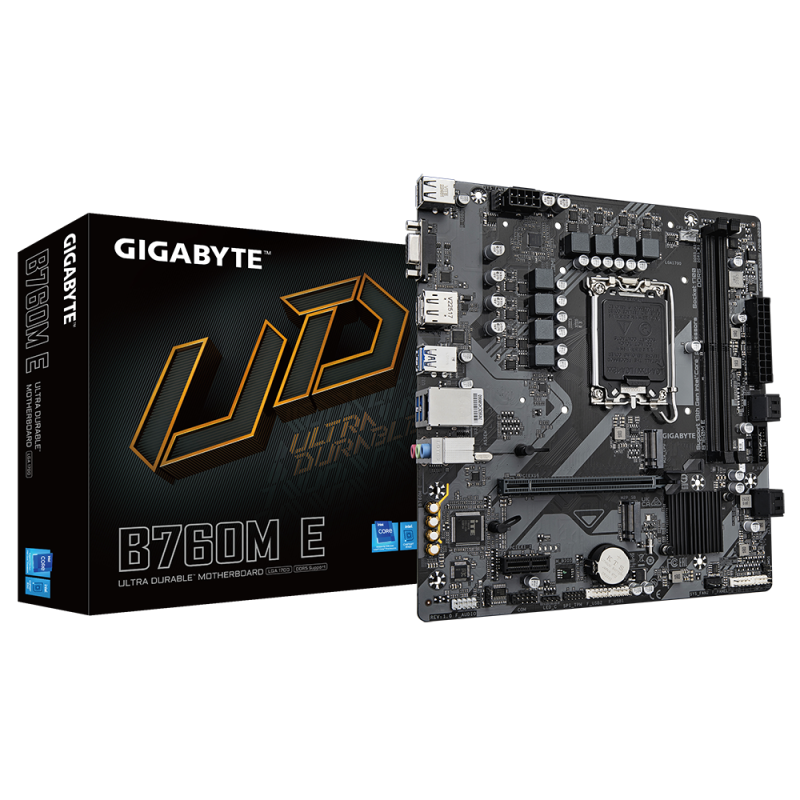

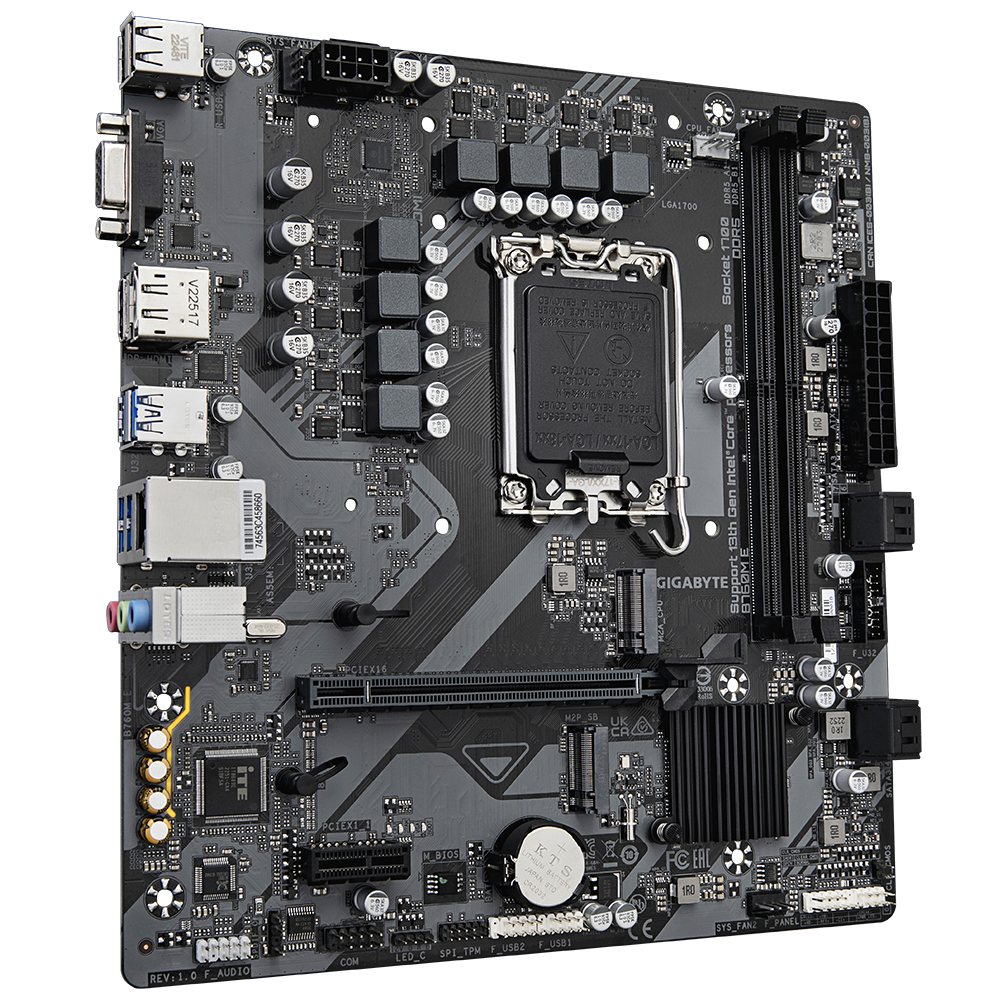

Código parte: B760M E
Supports Intel® Core™ 14th/ 13th /12th processors
Unparalleled Performance:Hybrid 6+1+1 Phases Digital VRM Solution
Dual Channel DDR5:2*DIMMs XMP Memory Module Support
Más información: B760M E
Procesador |
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
|
L3 cache varies with CPU |
Chipset |
Intel ® B760 Express Chipset
|
Memoria |
Support for DDR5 7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
|
2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory |
Dual channel memory architecture |
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
Support for Extreme Memory Profile (XMP) memory modules |
Gráficos Integrados |
Integrated Graphics Processor-Intel® HD Graphics support:
|

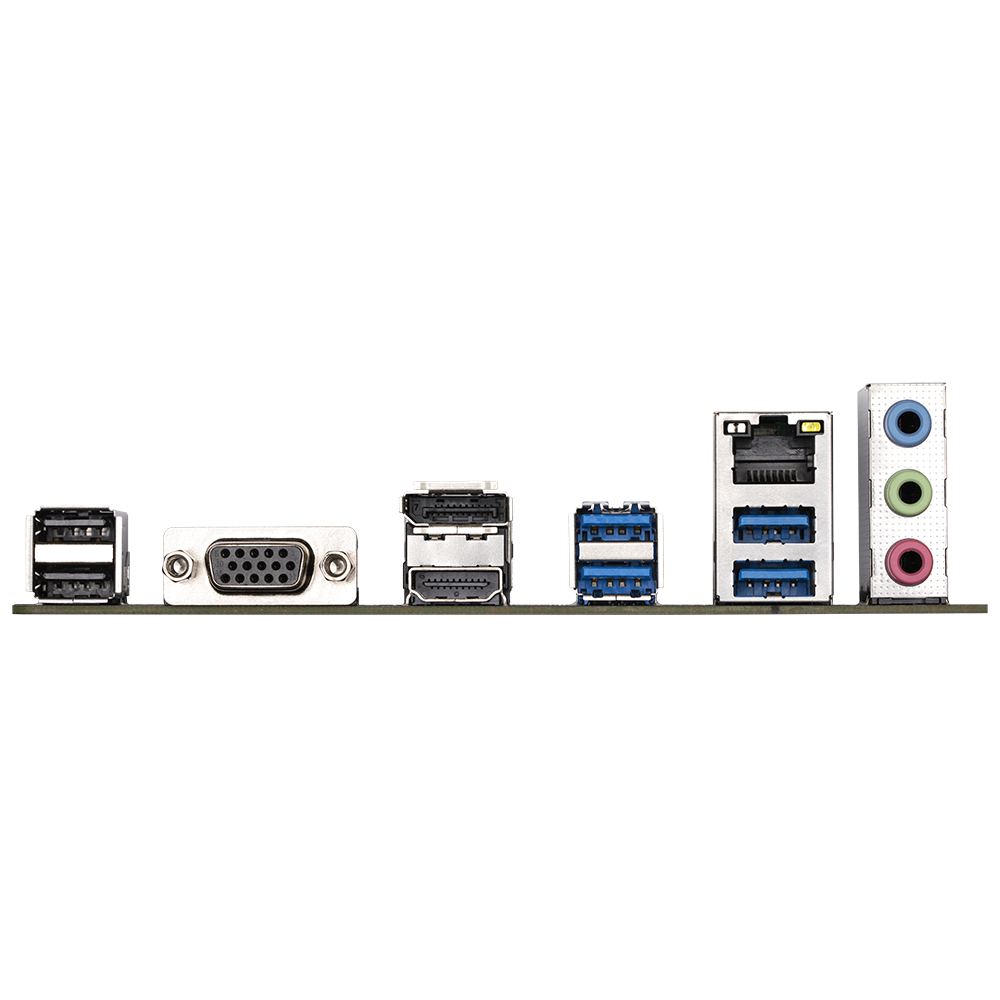

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
Support for up to triple-display at the same time |
Audio |
Realtek® Audio CODEC
|
High Definition Audio |
2/4/5.1/7.1-channel |
Support for S/PDIF Out |
LAN |
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
|
BIOS |
1 x 128 Mbit flash
|
Use of licensed AMI UEFI BIOS |
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Características Únicas |
Support for GIGABYTE Control Center (GCC)
|
Support for Q-Flash |
Software Incluido |
Norton® Internet Security (OEM version)
|
LAN bandwidth management software |
Sistema Operativo |
Support for Windows 11 64-bit
|
Support for Windows 10 64-bit |
Diseño |
Micro ATX Form Factor; 23.0cm x 21.5cm
|
