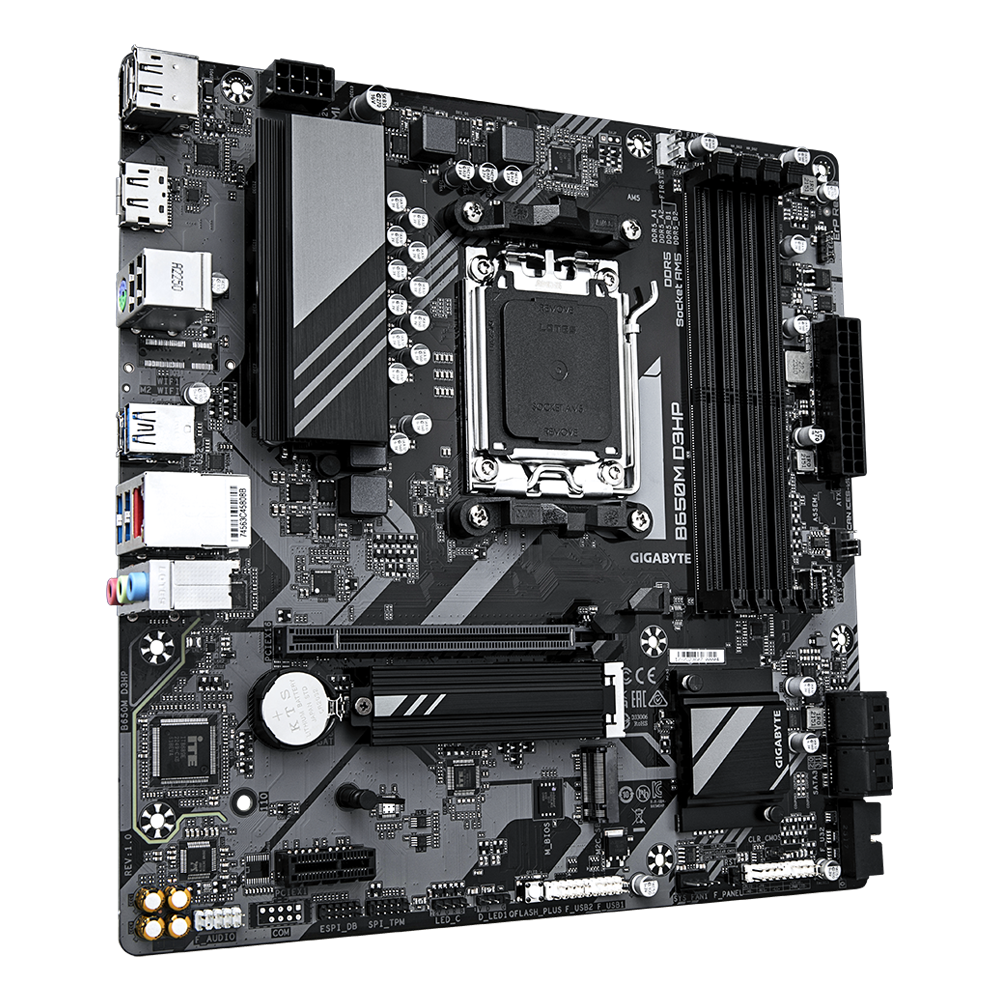

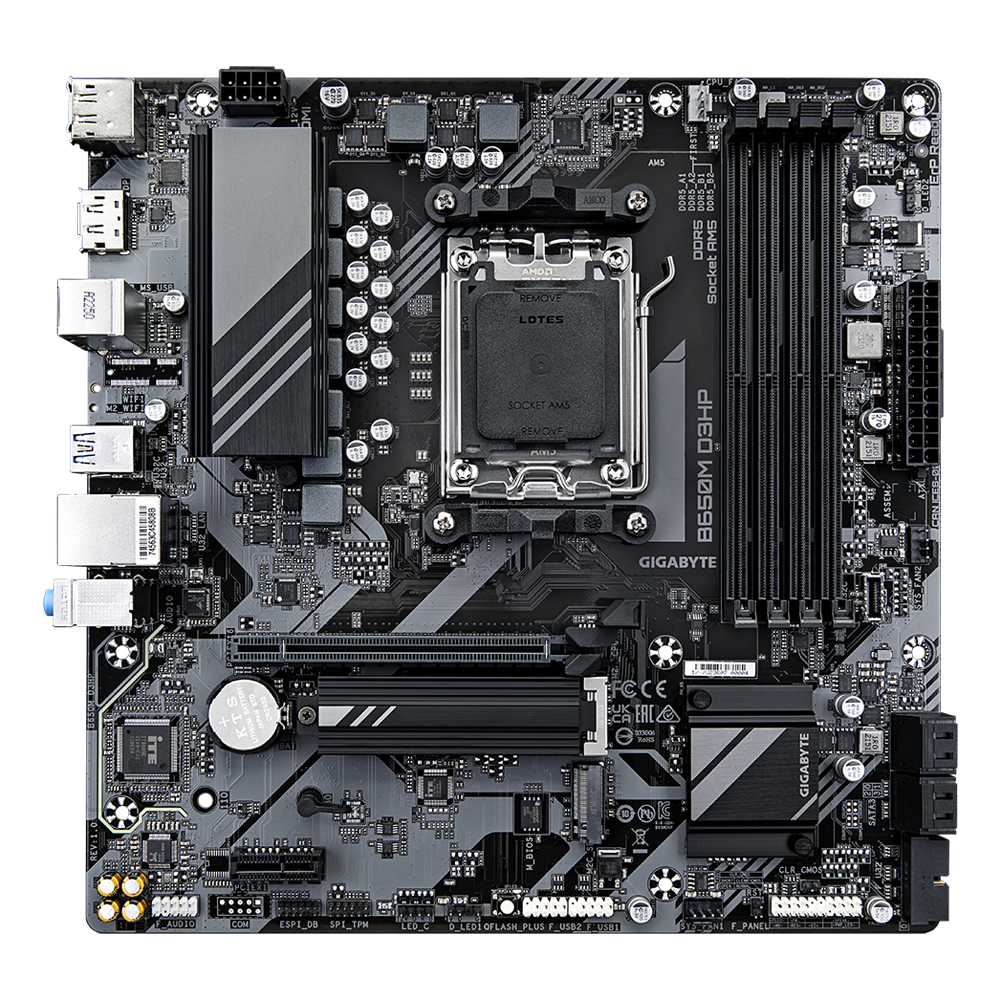

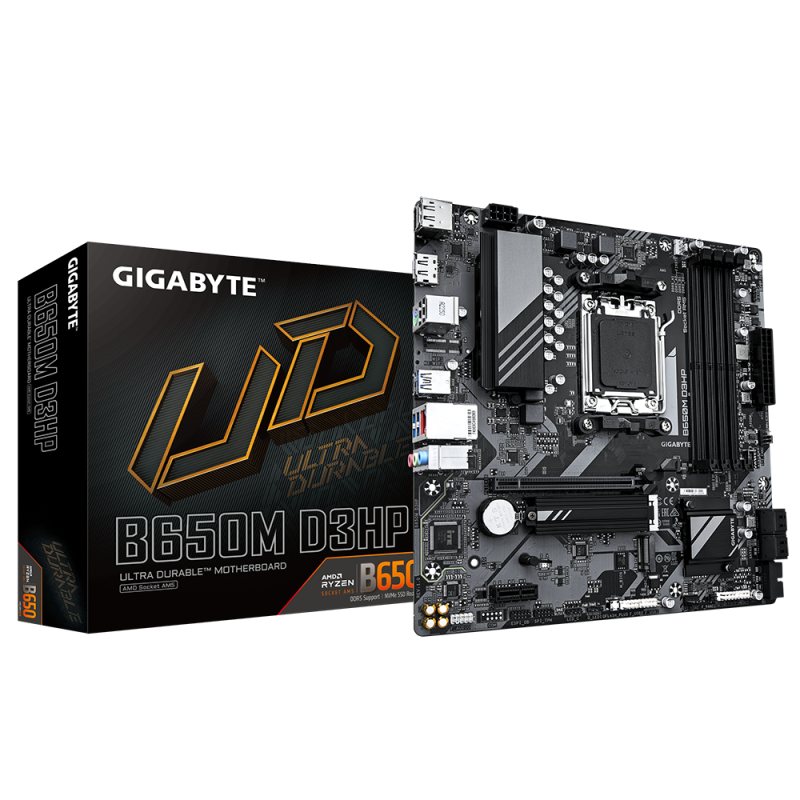

Código parte: B650M D3HP
Q Flash - Bios Button: Sí.
Socket AM5 de AMD: compatible con procesadores de las series AMD Ryzen™ 7000/Ryzen™ 8000/Ryzen™ 9000
Rendimiento incomparable: solución VRM digital de 5+2+2 fases
DDR5 de canal doble: 4*SMD DIMM con compatibilidad con módulos de memoria AMD EXPO™ e Intel® XMP
Almacenamiento de alta velocidad: conector PCIe 4.0 x4 M.2
Más información: B650M D3HP
|
Procesador
|
AMD Socket AM5, support for:
|
| AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors | |
|
Chipset
|
AMD B650
|
|
Memoria
|
Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
|
| 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules | |
|
Gráfica Integrada
|
Integrated Graphics Processor with AMD Radeon™ Graphics support
|
| - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz | |
| - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| Support for up to triple-display at the same time | |
|
Audio
|
Realtek® Audio CODEC
|
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
|
LAN
|
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
|
|
BIOS
|
1 x 256 Mbit flash
|
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
|
Otras Características
|
Support for GIGABYTE Control Center (GCC)
|
| Support for Q-Flash | |
| Support for Q-Flash Plus | |
|
Bundled Software
|
Norton® Internet Security (OEM version)
|
| LAN bandwidth management software | |
|
Sistema Operativo
|
Support for Windows 11 64-bit
|
| Support for Windows 10 64-bit | |
|
Formato
|
Micro ATX Form Factor; 24.4cm x 24.4cm
|
