MÓDULO Y CONVERTIDOR DE MEDIOS
|
| Estándares y protocolos |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Función básica |
Half/Full-Duplex transfer mode for FX port |
| |
Full Duplex Flow Control (IEEE 802.3x) |
| |
Half Duplex Flow Control (Backpressure) |
| |
Extends fiber distance up to 20km |
| |
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely |
| Puertos |
1 100M SC/UPC port |
| |
1 100M RJ45 port (Auto MDI/MDIX) |
| Longitud de onda |
1310nm |
| Medios de red 10BASE-T |
UTP category 3, 4, 5 cable (maximum 100m) |
| |
EIA/TIA-568 100Ω STP (maximum 100m) |
| Medios de red 100BASE-T |
UTP category 5, 5e cable (maximum 100m) |
| |
EIA/TIA-568 100Ω STP (maximum 100m) |
| Medios de red 100BASE-FX |
Single-mode Fiber |
| Indicadores LED |
PWR, FDX/Col, Link/Act, SPD |
| Dimensiones (Al x An x Pr) |
3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Fuente de alimentación |
External power supply |
| Consumo máximo de energía |
1.52W |
| Seguridad y emisión |
FCC, CE, RoHS |
| Package Contents |

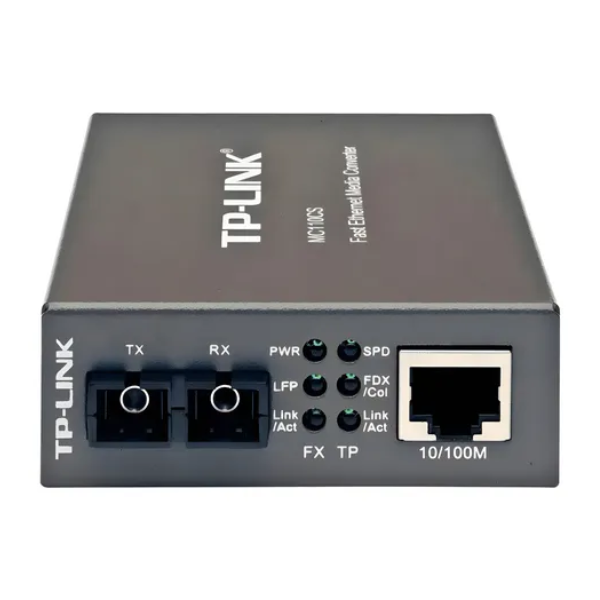

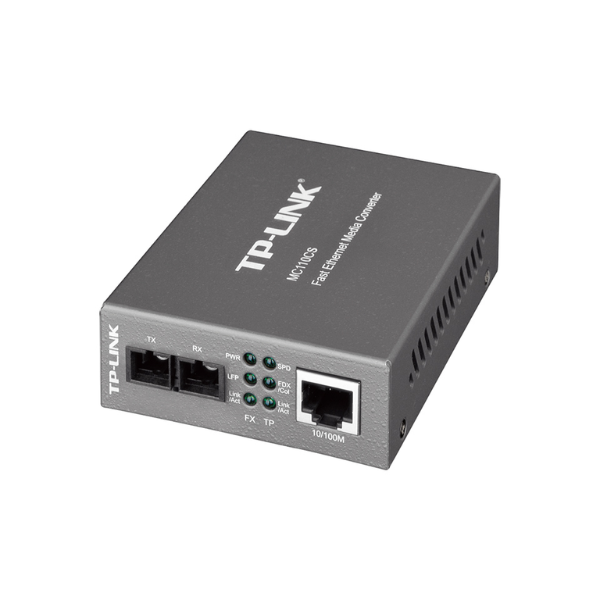

• Media Converter MC110CS |
| |
• Power Adapter |
| |
• Installation Guide |
| Ambiente |
Operating Temperature: 0℃~40℃ (32℉~104℉) |
| |
Storage Temperature: -40℃~70℃ (-40℉~158℉) |
| |
Operating Humidity: 10%~90% non-condensing |
| |
Storage Humidity: 5%~90% non-condensing |
