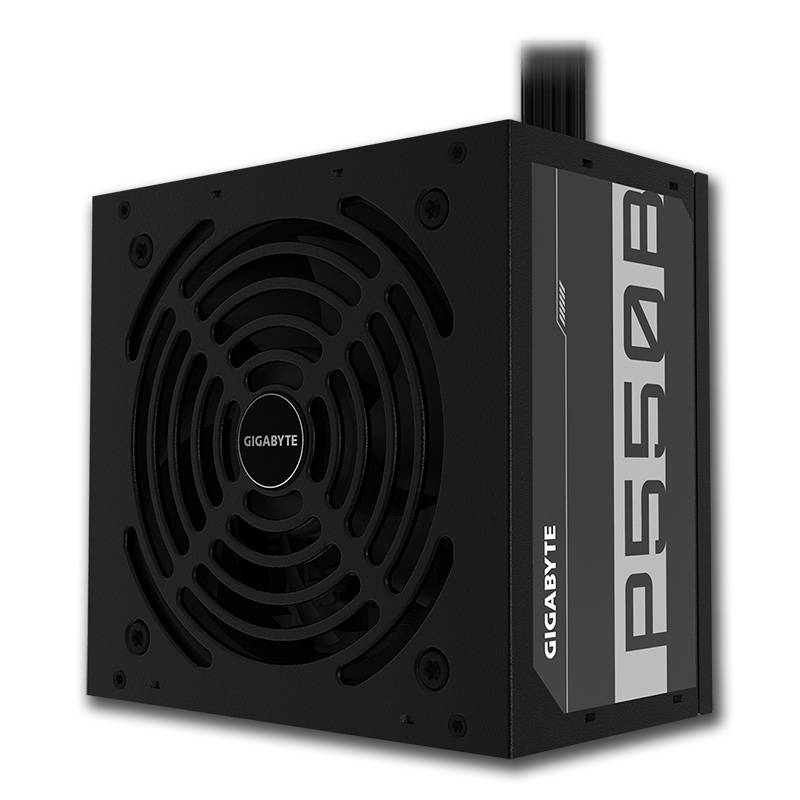

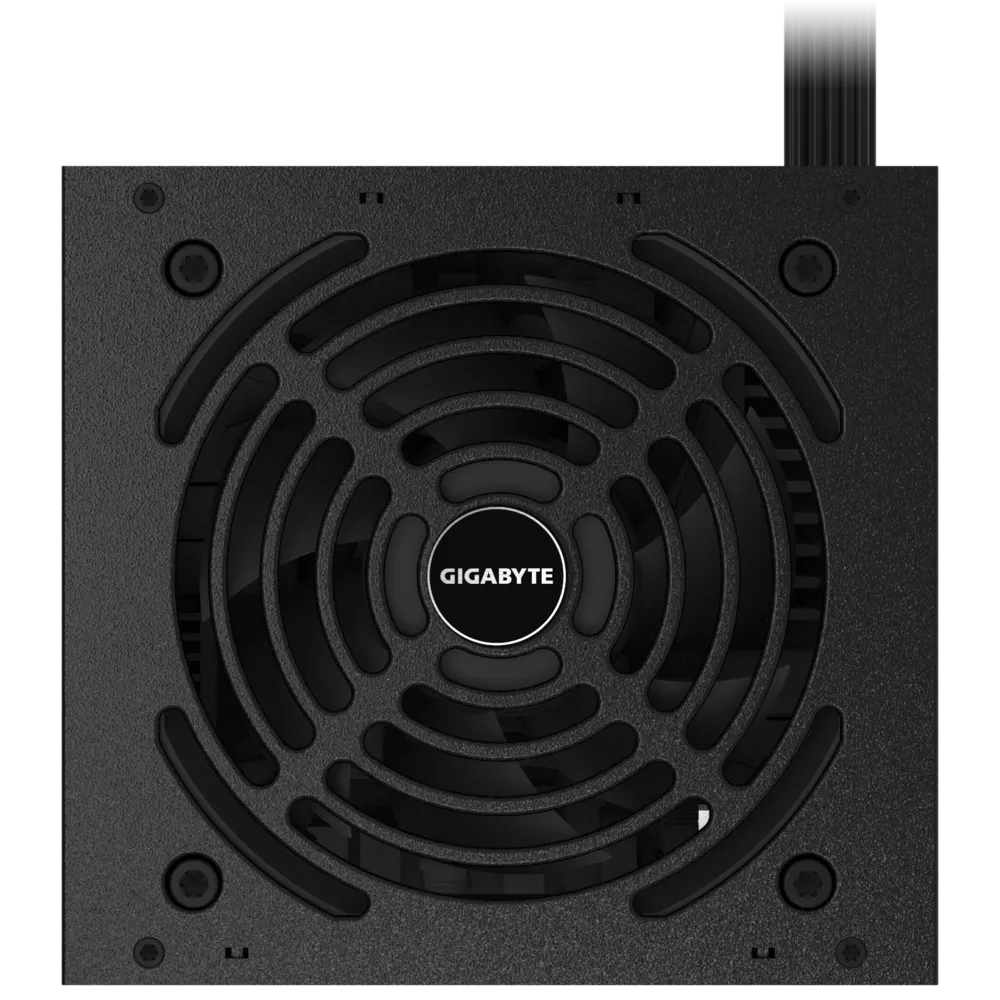

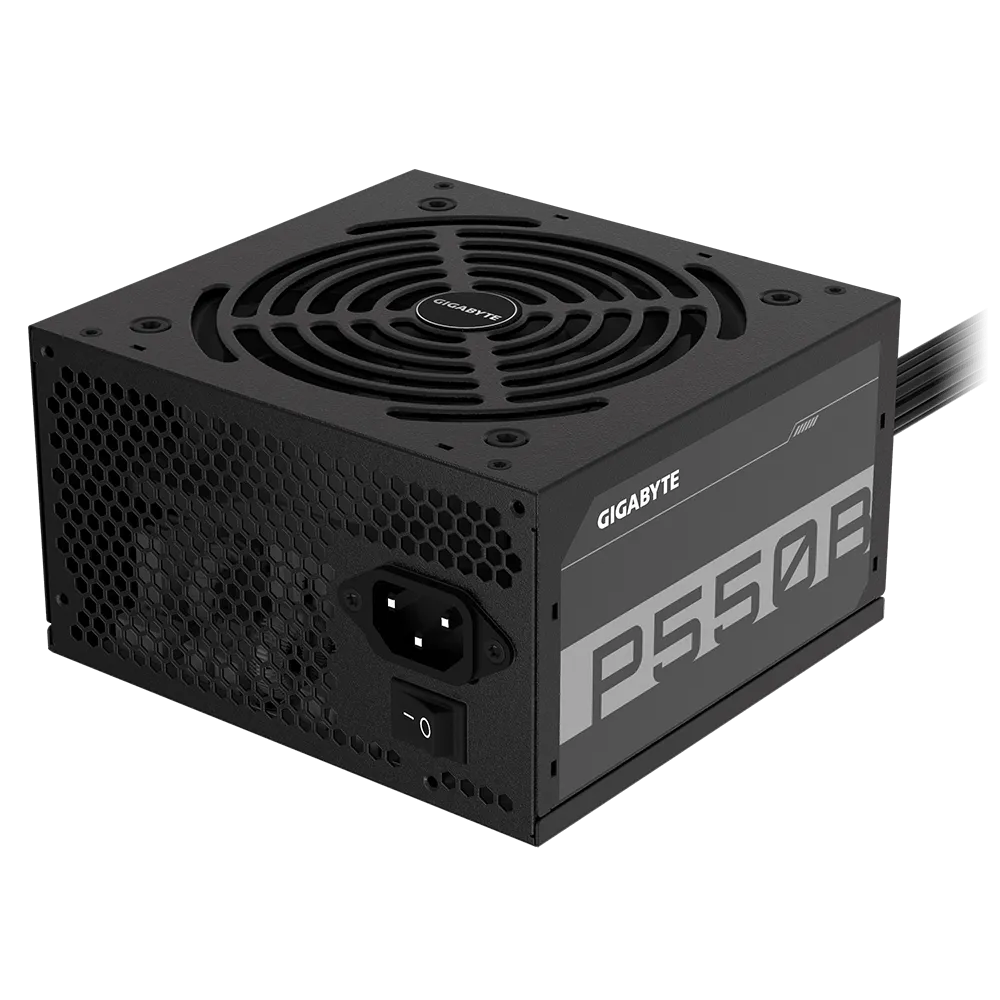

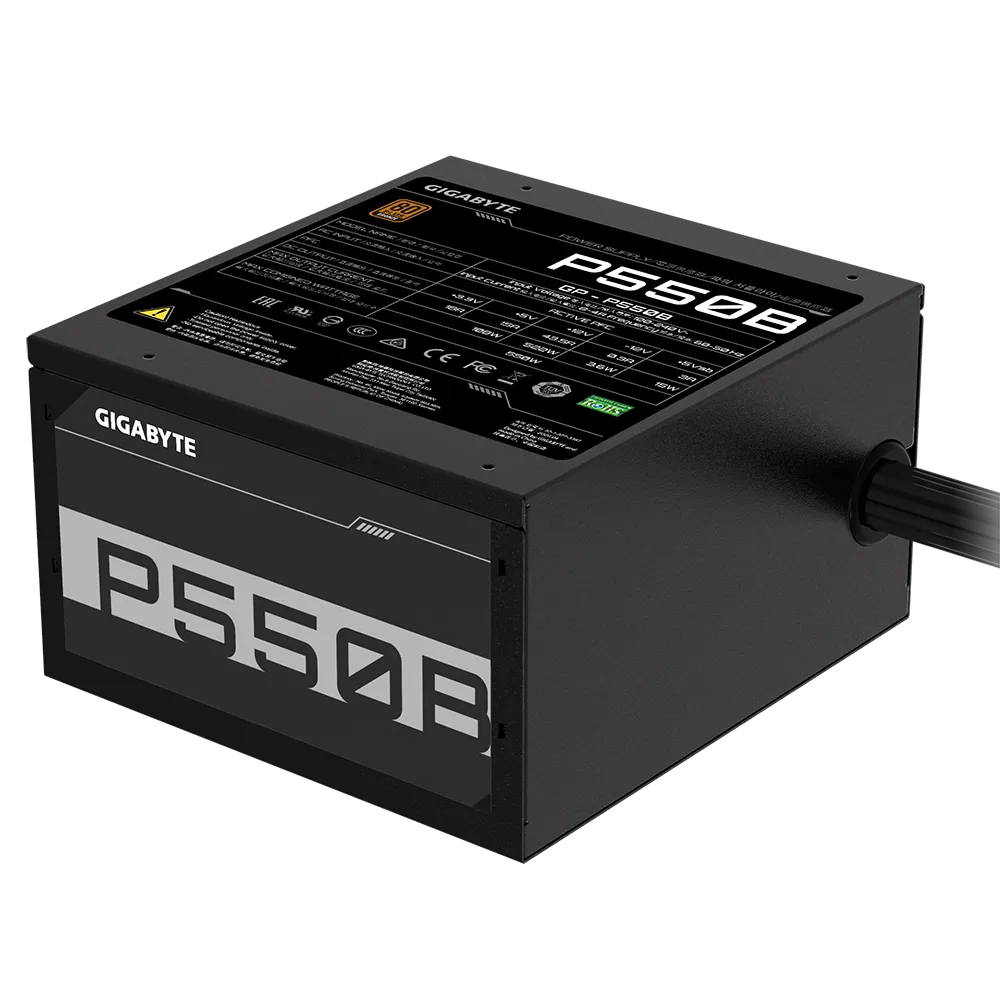

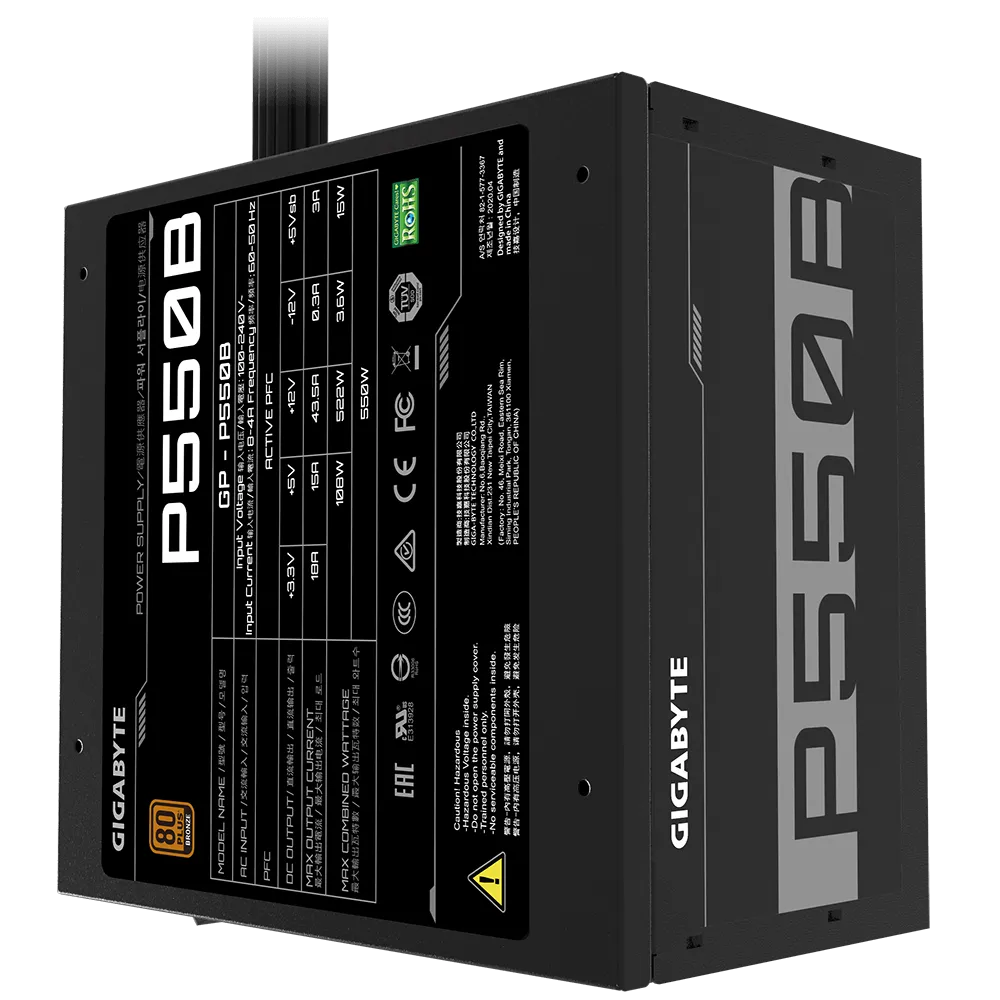

Fuente Gigabyte 550W 80 plus Bronze (1575)

Código parte: GP-P550B/AR

Más información: GP-P550B/AR

Model	P550B
Type	Intel Form Factor ATX 12V v2.31
PFC	Active PFC(>0.9 typical)
Input Voltage	100-240 Vac(full range)
Input Current	8-4 A
Input Frequency	60-50 Hz
Output Capacity	550W
Dimension	150 x 140 x 86 mm
Fan Type	120mm Hydraulic Bearing (HYB) Fan
80 PLUS	Bronze
Efficiency	85% at typical load
MTBF	>100,000 hours
Protection	OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal	100-500ms
Hold Up Time	>16ms
Cable Type	Flat, All black
Connectors	ATX/MB 20+4 Pin x 1 : 550mm*1
	CPU/EPS 4+4 Pin x 1 : 600mm*1
	PCI-e 6+2 Pin x 2 : 550mm+150mm*1
	SATA x 6 : 500mm+120mm+120mm*2
	4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1

(0411891)
