Model	GP-UD750GM
Type	Intel Form Factor ATX 12V v2.31
PFC	Active PFC (>0.9 typical)
Input Voltage	100-240 Vac (full range)
Input Current	12-6A
Input Frequency	60-50 Hz
Output Capacity	750W
Dimension	150 x 140 x 86 mm
Fan Type	120mm Hydraulic Bearing(HYB)fan
80 PLUS	Gold
Efficiency	90% at typical load
MTBF	>100,000 hours
Protection	OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal	100-150ms
Hold Up Time	>16ms
Cable Type	Flat, All black

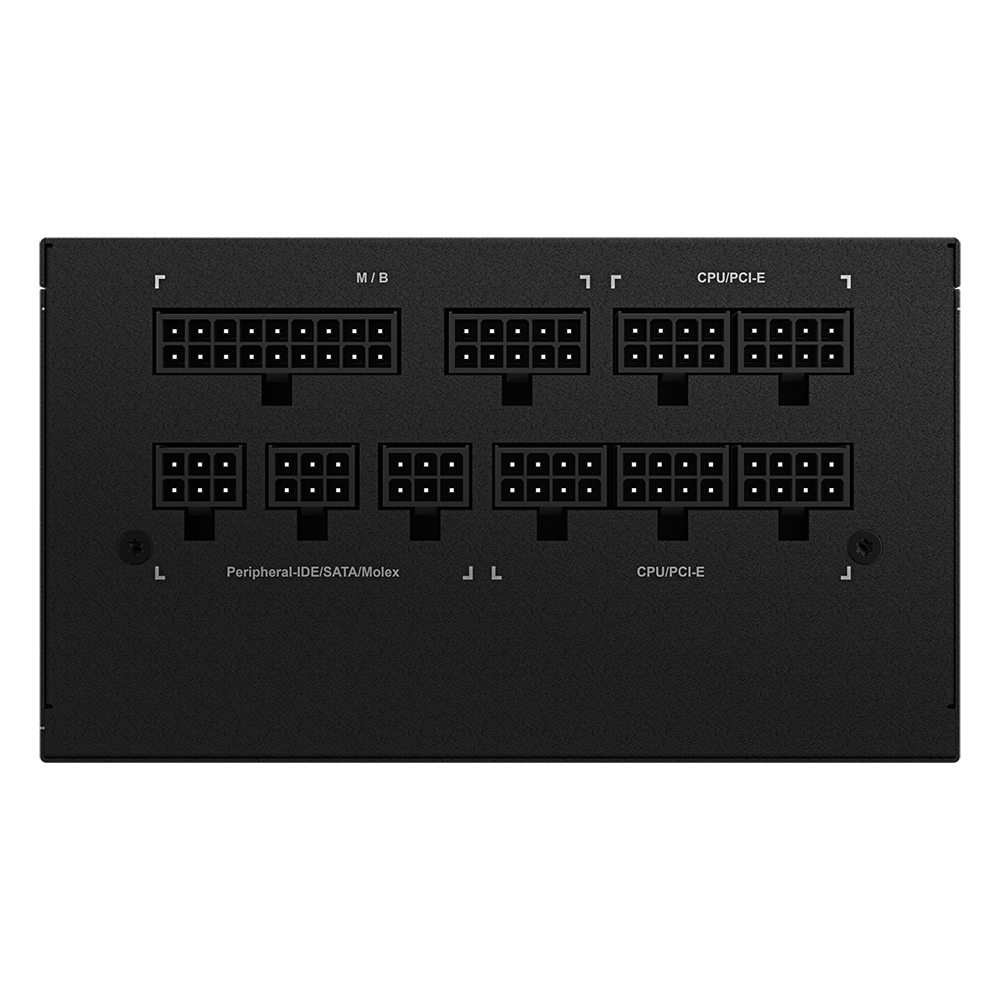

Connectors	ATX/MB 20+4 Pin x 1 : 610mm*1
	CPU/EPS 4+4 Pin x 2 : 600mm*2
	PCI-e 6+2 Pin x 4 : 600mm+150mm*2
	SATA x 8 :
	600mm+150mm+150mm+150mm*2
	4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1

Fuente Gigabyte 750W 80 Plus Gold Ultradurable Full Modular (2763)
