Código parte: EX141
Compatible con características como Muti-SSID, TX Beamforming, MU-MIMO, DL/UL OFDMA, Airtime Fairness, Guest Network y Seguridad WPA/WPA2-PSK/WPA3.
Compatible con el estándar de la Wi-Fi Alliance EasyMesh R2 permite la creación de una red Mesh con otros dispositivos que cumplan el estándar. Actualizable a EasyMesh R3.
Más información: EX141
CARACTERÍSTICAS DE HARDWARE |
|
| Interfaz | 1 10/100/1000 Mbps RJ45 WAN Port |
| 3 10/100/1000 Mbps RJ45 LAN Ports | |
| Botones | Reset Button, WPS/Wi-Fi Button |
| Fuente de Alimentación Externa | 12V/1A |
| Dimensiones | 7.2 × 3.7 × 1.3 in (182.7 × 94 × 33.3 mm) |
| Antenas | Four External antennas |
CARACTERÍSTICAS INALÁMBRICAS |
|
| Estándares Inalámbricos | IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11n/g/b 2.4 GHz |
| Frecuencia | 2.4 GHz and 5 GHz |
| Tasa de Señal | 1201 Mbps on 5 GHz, 300 Mbps on 2.4 GHz* |
| Funciones Inalámbricas | Enable/Disable Wireless Radio, WMM, Wireless Statistics, Band Steering |
| Seguridad Inalámbrica | WPA/WPA2/WPA3 encryptions |
| Potencia de Transmisión | CE: |
| FCC: | |
| Planificador de Red Inalámbrica | Support 2.4 GHz and 5 GHz Wireless Schedule |
| Tecnología Mesh | EasyMesh Compatible, and support 802.11k/v/r |
CARACTERÍSTICAS DE SOFTWARE |
|
| Características Avanzadas | Muti-SSID, Guest Network, QoS (Quality of Service), TX Beamforming, MU-MIMO, OFDMA, Airtime Fairness |
| Modo de Funcionamiento | Router, Access Point |
| Tipo de WAN | Dynamic IP/Static IP/PPPoE/PPTP/L2TP (Multi-EWAN) |
| Gestión | Local management: WebGUI management, Aginet app management |
| Remote management: Aginet ACS, TR-069, TR-098, TR-181,TR-111, and TR-143 for service providers | |
| Aginet APP for end user (need to log in wtih TP-Link ID and bind your device to it) | |
| DHCP | Server, DHCP Client List, Address Reservation |
| Reenvío de Puertos | Virtual Server, Port Triggering, UPnP, DMZ |
| DNS Dinámico | DynDns, NO-IP |
| VPN Pass-Through | IPSec, PPTP, L2TP |
| Control de Acceso | Parental Controls, White List, Black List |
| Seguridad Firewall | DoS, SPI Firewall, IP and MAC Address Binding |
| Protocolos | IPv4, IPv6 |
| Servidor VPN | PPTP, OpenVPN, IPSec |
Otros |
|

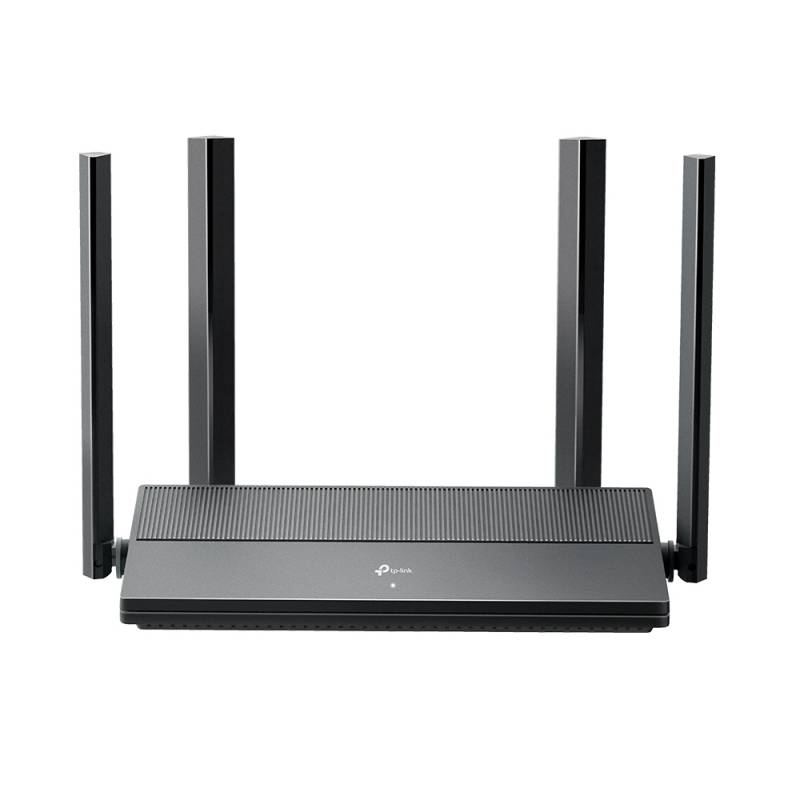

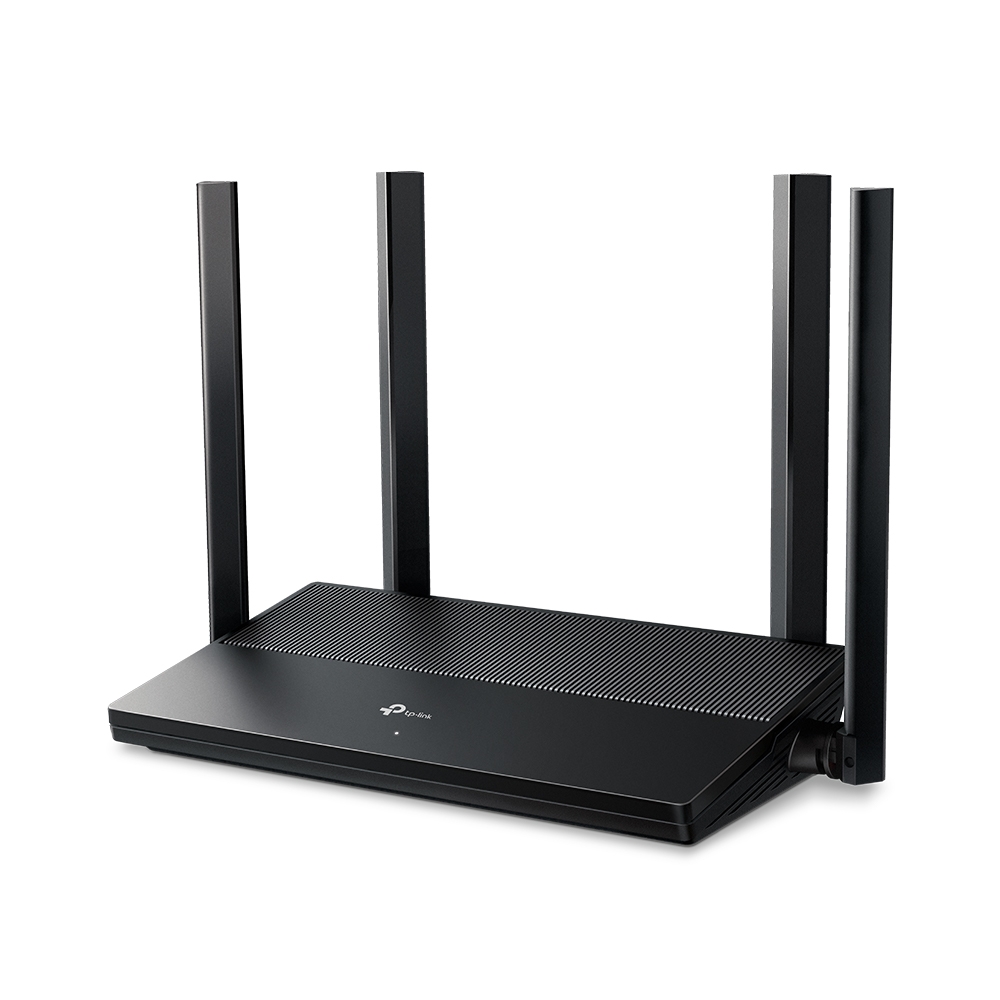

| Contenido del Paquete | AX1500 Dual Band Gigabit Wi-Fi 6 Router EX141 |
| Power Adapter | |
| RJ45 Ethernet Cable | |
| Quick Installation Guide | |
| Requisitos | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux |
| Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser | |
| Subscription with an internet service provider (for internet access) | |
| Factores Ambientales | Operating Temperature: 0℃–40℃ (32℉–104℉) |
| Storage Temperature: -40℃–60℃ (-40℉–140℉) | |
| Operating Humidity: 10%–90% non-condensing | |
| Storage Humidity: 5%–90% non-condensing | |
